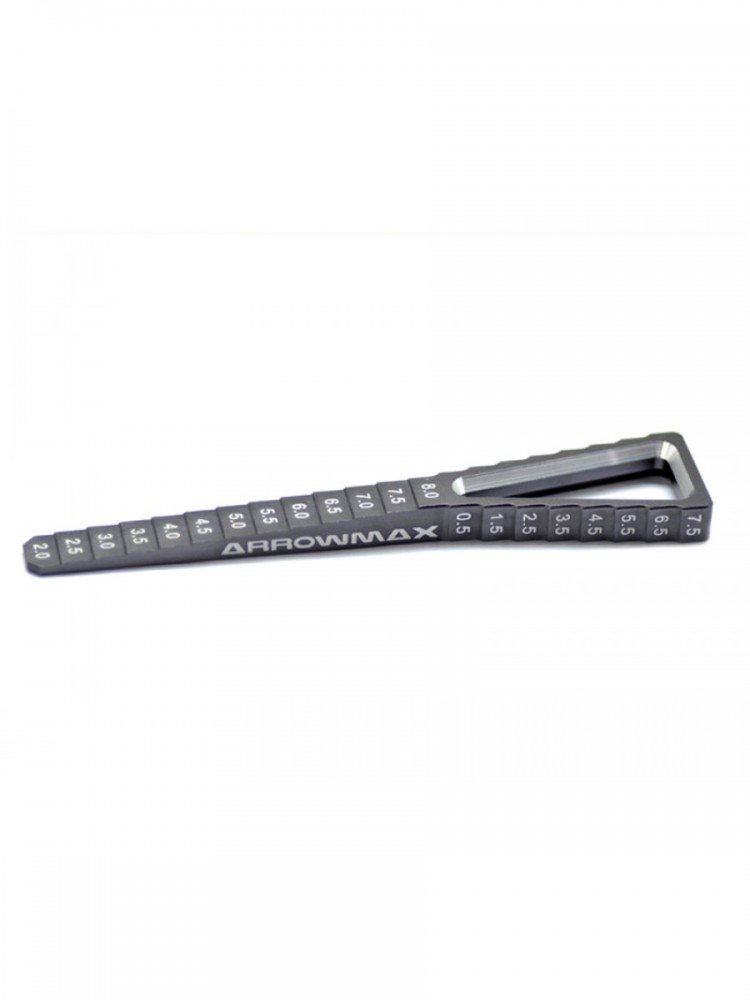

Arrowmax AM-170023 Ultra Step Ride Height / Droop Gauge TC  [AM-170023]

Ride height and droop gauge for TC

The Arrowmax AM-170023 Ultra Step Ride Height / Droop Gauge TC is a dedicated RC-scale setup tool designed to help you measure ride height and droop consistently on TC (touring car) chassis. Its form factor and stepped reference edges allow repeatable checks while you adjust shocks, spring height, and suspension travel during a setup session.

Intended role: use the gauge after initial assembly or between track runs to verify that ride height and droop targets remain within your setup window. The tool is neutral and precise by design, serving as a reference anywhere fine adjustments are required.

Practical notes: work on a level surface, compress and secure the suspension to the same preload state for repeatable droop readings, and record values so suspension changes can be correlated to handling differences on-track.

This AM-170023 gauge provides a consistent reference for ride height and droop checks on touring car platforms, helping to reduce setup variance and speed routine tuning tasks.
