Arrowmax am-174044 4D Set-up system for 1/8 onroad  [am-174044]

4D setup tool for 1/8 onroad

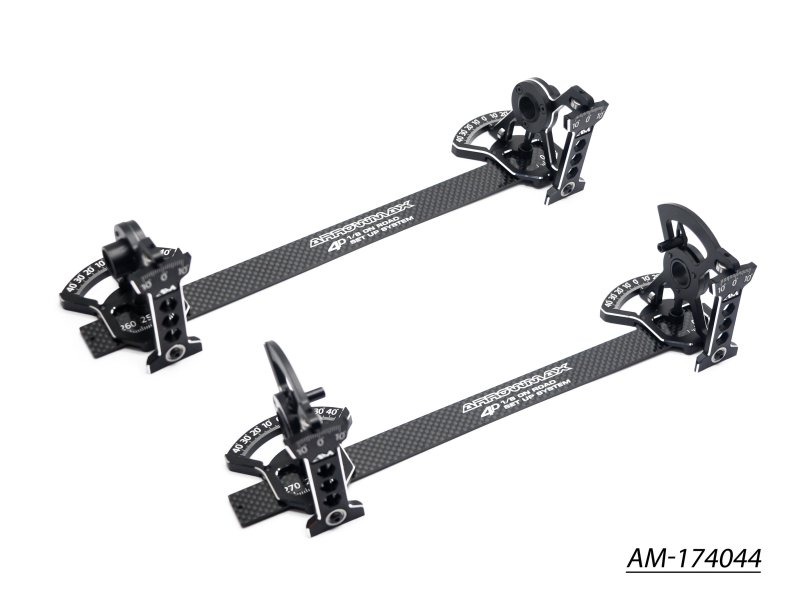

The Arrowmax am-174044 is an RC-scale 4D set-up system designed for 1/8 onroad models, built to support precise measurement and incremental adjustment during chassis tuning. The system focuses on core alignment parameters used in RC setup: camber, caster, toe-in/out, track width and steering-angle symmetry.

In practice the set-up system serves as a reference platform during pre-run checks and iterative tuning sessions. It helps you verify wheel alignment and track width, confirm left/right steering symmetry, and repeat measurements while you make suspension or steering geometry changes. The design intent is to make comparisons between configurations straightforward and to reduce guesswork when setting baseline alignment values.

Installation and use are straightforward: position the system on a level surface, align it to the wheel hubs or reference points on the chassis, and read off the adjustment indicators before making changes to suspension links, steering tie rods or toe blocks. For consistent results, follow a repeatable sequence of measurements and document values after each change so adjustments can be reversed or refined.

This set-up system is intended as a shop or pit-side tool for RC model tuning, offering a methodical way to measure and adjust alignment-related parameters during setup and testing.
