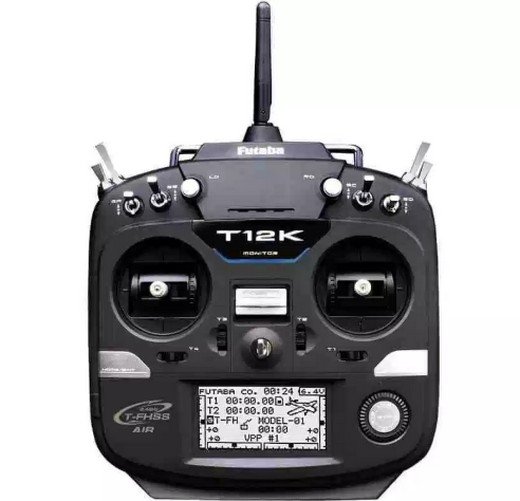

Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver  [12K]

Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver
Price:
USD$395.90
Brand:
Futaba
Model:
12K
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - System - Transmitter - Flight Transmitters category
Write a review
alt="Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver" title="Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver"
alt="Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver" title="Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver"
alt="Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver" title="Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver"
The 14-Channel 2.4G Transmitter w/R3008SB Receiver produced by Futaba, is classified in R/C Models - System - Transmitter - Flight Transmitters

The 12K combines first-class performance with amazing versatility to produce a method that's very easy to operate, yet feature-packed! For sale in systems perfectly matched for airplanes, helis and gliders, the 12K can be appropriate for multi-rotors, so pilots get the very best of all globes.

Designed with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with very nearly several different Futaba receivers to accommodate modelers' needs. The 12K can transfer and get telemetry data via the T-FHSS protocol. Just install Futaba telemetry sensors (offered individually) observe flight information, accept alerts during trip and more. These sensors allow pilots to keep an eye on battery voltage, altitude, speed and other key flight functions.

Along with telemetry, the 12K can be utilized with S.Bus2 gear to incorporate multiple servos, gyros and much more to set-ups with fewer cables. Pilots with non-telemetry set-ups can take advantage of the interference-free S-FHSS protocol. A sizable, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are only a few more associated with features the 12K provides.

Select from airplane and heli 12K systems with all the R3008SB telemetry receiver included. FPV/drone pilots will appreciate the lightweight, compact R3001SB FPV drone receiver optimized for his or her applications.

Transmitter Features:

  • Channels: 14 (12 proportional, 2 switched)
  • Compatible with T-FHSS and S-FHSS protocols
  • Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, quick access
  • Headphone plug, trainer slot and S.Bus plug-in
  • S.Bus2 system enables numerous servos, gyros and telemetry sensors with a minimal range cables
  • Model kinds: six types of primary wing with three tail kinds for airplanes, six swash kinds for helis and multi-rotor functions
  • Enhanced stick feel with adjustable lengths and stress
  • Dual rates/exponential
  • Included 6V 1800mAh NiMH battery pack and charger
  • Large, backlit LCD display with adjustable contrast for easier reading. Push/dial operation simplifies set-up
  • Micro storage device slot for saving model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, perhaps not included)
  • Vibration feature alerts pilots to different alarms and timers, besides to noise
  • 10-character model naming
  • Expandable 30-model memory
  • 5 flight conditions (Helicopter and Glider model selections)
  • 5 customizable programmable mixes
  • Servo ensure that you servo place display
  • Fuel mixing
  • Stick calibration
  • Servo speed
  • Logic switching



Airplane Features:

  • 6 wing kinds
  • 3 tail wing kinds
  • 5 trip modes
  • Pitch curve
  • Throttle bend
  • Throttle wait
  • Aileron differential
  • Flap setting
  • Aileron to camber flaps
  • Aileron to brake flaps
  • Aileron to rudder
  • Rudder to aileron
  • Camber mix
  • Elevator to camber
  • Camber flap to elevator
  • Butterfly function
  • Trim mix
  • Air braking system
  • Gyro mix
  • V-Tail
  • Ailevator (twin elevator)
  • Winglet
  • Engine rate
  • Rudder to elevator
  • Snap roll
  • Multi-engine functionality
  • Airbrake
  • Helicopter F



Helicopter Qualities:

  • Six swash types
  • Pitch bend and pitch trim
  • Throttle curve and throttle hover trim
  • Throttle hold
  • Swash band
  • Pitch to needle
  • Pitch to rudder (revolution mixing)
  • Gyro blending
  • Governor mixing
  • Timer settings
  • Throttle percent timer



Glider Features:

  • Glider-specific functions
  • 6 wing kinds
  • 3 end wing types



Multirotor Qualities:

  • Throttle stick position warning
  • Gyro Sense
  • Flight Mode
  • Throttle Curve
  • Throttle Delay



R3008SB Receiver Features:

  • T-FHSS protocol
  • Double Antenna Diversity
  • S.Bus/S.Bus2 ports (S.Bus2 slot for bidirectional telemetry sensors)
  • 8-channel PWM mainstream ports
  • High voltage
  • Battery fail-safe
  • External voltage port: 0-70V DC
  • Power requirement: 4.8-7.4V
  • Dimensions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
  • Body weight: 0.36 oz (10.1 g)
