Futaba 7CH 7-Channel (M1) 2.4GHz/ R617FS  [7CH_C1]

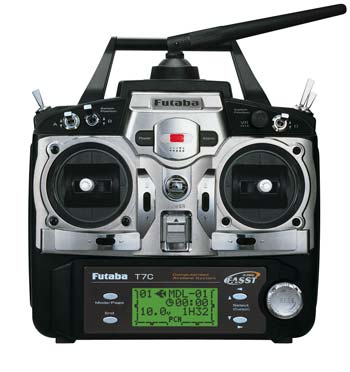

Futaba 7CH 7-Channel (M1) 2.4GHz/ R617FS
Price:
USD$282.90
Brand:
Futaba
Model:
7CH_C1
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - System - Transmitter - Flight Transmitters category
Write a review
The 7-Channel M1 2.4GHz/ R617FS produced by Futaba, is classified in R/C Models - System - Transmitter - Flight Transmitters

The 7C sits squarely in the centre ground in computer systems. It's something that provides much of the 9C's set-up flexibility matched to 4-channel simplicity. Like all other computer systems with this web page, it offers Dial n' Key ease of use for programming, and 2.4GHz FASST system for an unparalleled RF website link.

QUALITIES:

  • Available with 4 S3152 electronic high-torque servos (FUTK7000/7001); 4 S3004 ball bearing servos (FUTK7002); or 4 S3001 ball bearing servos (FUTK7003)
  • Dial 'n KeyTM development
  • Airplane software
  • Assignable switches/functions
  • Up/down timer
  • Mode 1-4 selectable (modes 3 and 4 available via transmitter pc software)
  • Big 72 x 32 LCD display with adjustable comparison
  • 10-model memory
  • 6-character model naming
  • Digital trims, trim memory, EPA, subtrims and servo reversing (all networks)
  • Dual/Triple rates* (aileron/elevator/rudder)
  • Exponential (aileron/elevator/rudder)
  • Adjustable throttle cut
  • Fail-safe
  • Trainer system (cable required)
  • Flap switch
  • Retract switch
  • Adjustable rate knob (channel 6)
  • Helicopter Advanced Menu:
  • Governor choose can help you match rpm/blade speed to maneuvers
  • Swash to throttle mixing assists heli pilots keep their rpm steady
  • 3 programmable mixes
  • Throttle curve (5-point normal, idle up 1 & 2)
  • Pitch bend (5-point normal, idle up 1 & 2)
  • Revo combining
  • Gyro blending
  • Hovering throttle
  • Hovering pitch
  • Throttle hold
  • Trim offset
  • 6 swash plate set-ups (5 CCPM options)

INCLUDES:

  • Futaba 7C 2.4Ghz Transmitter
  • NT8F600B 9.6V 600mAh Transmitter Battery
  • R617FS Receiver

SPECS:

Transmitter:

  • Operating system: 2-stick, 7 channels
  • Power: 9.6V NT8S600B Ni-Cd battery pack
  • Present Drain: 250 mA

Receiver:

  • Size: 41.6 x 27.5 x 9.2 mm
  • Energy Requirement: 4.8 - 6V
  • Current Drain: 80mA (at no signal)
  • Weight: 0.34oz (9.8g) with case, 0.25oz (7g) without instance
