Futaba BLS155 Brushless High Torque Servo [BLS155]

Price:

USD$146.40

Brand:

Futaba

Model:

BLS155

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - System - Servo - Standard Servos category

Write a review

Description

The Brushless High Torque Servo produced by Futaba, is classified in R/C Models - System - Servo - Standard Servos

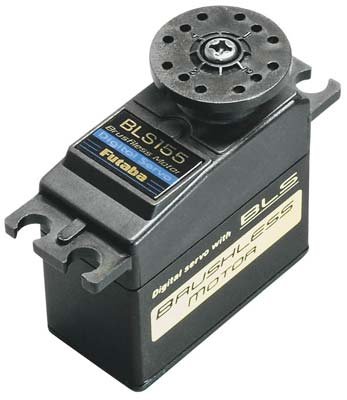

Here is the Futaba BLS155 Aircraft Tall Torque Brushless Servo.

QUALITIES:

Designed for aircraft applications requiring high torque
Standard size
Equipped with metal gears and two ball bearings
30% faster reaction than standard electronic servos and five times more durable than servos with brushed motors
Same energy consumption as brushed electronic servos

INCLUDES:

Futaba BLS155 Brushless Aircraft High Torque Servo with universal connector, (21mm) diameter round horn, 1.8" (45mm) diameter circular horn 1.2" (32mm) diameter 6-point horn, 1.5" (38.8mm) diameter 4-point horn, mounting screws, eyelets and grommets

NEEDS:

Setting up in aircraft, linking linkage and linking to receiver

SPECS:

Torque: 200 oz-in (14.4 kg/cm) @ 4.8V
250 oz-in (18.0 kg/cm) @ 6.0V
Speed: 0.19 sec/60?X @ 4.8V
0.15 sec/60?X @ 6.0V
Size: 1.60 x 0.80 x 1.50" (40 x 20 x 36.8mm)
Body weight: 2.30 oz (64g)
