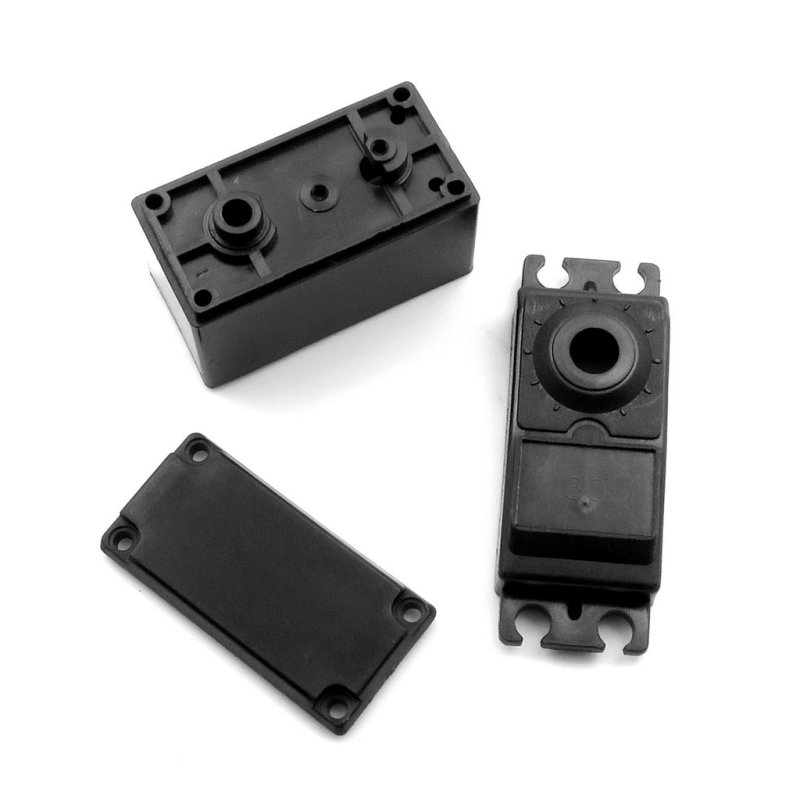

This servo case set is an RC-scale accessory designed to house and secure Futaba S5101 and S9101 standard-size servos. It provides a tidy mounting solution that helps keep the servo fixed in place while preserving access for linkage and horn adjustments.
Compatibility is limited to the S5101 and S9101 servo families as specified, so verify the servo dimensions and spline alignment before fitting. The set supports common servo mounting methods used in 1/10 electric models and works with typical servo arms and linkages found on those platforms.
Installation guidance: align the servo splines with the horn, seat the servo into the case while keeping wiring clear of moving parts, and use the original servo mounting screws or equivalent to secure the assembly. Allow sufficient clearance for horn travel and check for interference with nearby chassis components during suspension compression and steering movement.
Role in tuning and setup: a stable case reduces play between the servo and chassis which can improve repeatability of steering inputs and throttle/brake control in scale setups, and it makes quick swaps easier during bench tuning or trackside adjustments.
