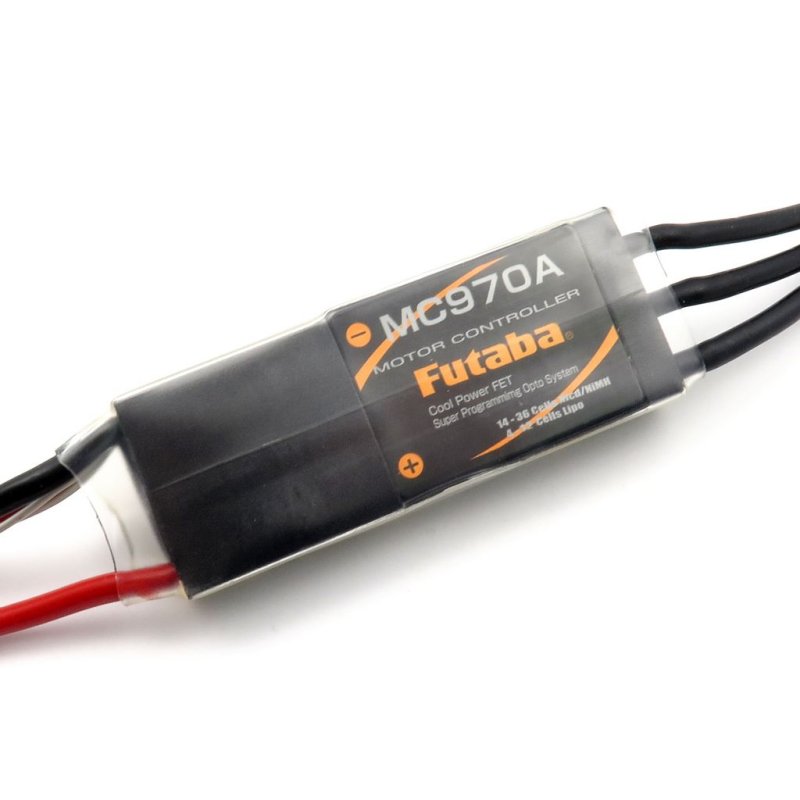

Futaba FUMC970A 70AMP 4-12S Li-Po Brushless Motor Controller ESC without BEC  [FUMC970A]

Aircraft brushless ESC notes

The Futaba FUMC970A is a compact electronic speed controller intended for RC-scale electric aircraft power systems that use brushless motors and multi-cell Li-Po packs. Key built-in data from the model name: 70AMP continuous current capacity, support for 4–12S Li-Po, brushless motor control, and it ships without an integrated BEC. These attributes define its role in a powertrain: the ESC handles motor commutation and throttle response while requiring a separate receiver power arrangement when no BEC is present.

Installation considerations focus on wiring, power distribution, and cooling. Because the unit does not include a BEC, provide a separate regulated supply for servos and receivers, or route power from the flight battery through an external UBEC or regulator. Secure mounting with vibration isolation and adequate airflow around the ESC case helps maintain stable current handling at higher loads. Use correct gauge wires and soldered or rated connectors suitable for 70AMP continuous operation.

Tuning and setup: program basic motor timing, governor modes, and brake logic only with tools and procedures specified by Futaba for the FUMC970A; avoid ad hoc changes that could lead to overcurrent conditions. Match the ESC to a motor and propeller combination that keeps peak and continuous current within safe margins for the 70AMP rating, and verify thermal behavior in bench tests before flight.

For model aircraft builders who need a high-current brushless ESC without integrated receiver power, the FUMC970A provides a clearly specified power handling envelope that pairs with an external BEC and appropriately rated brushless motors to form a complete electric propulsion system.
