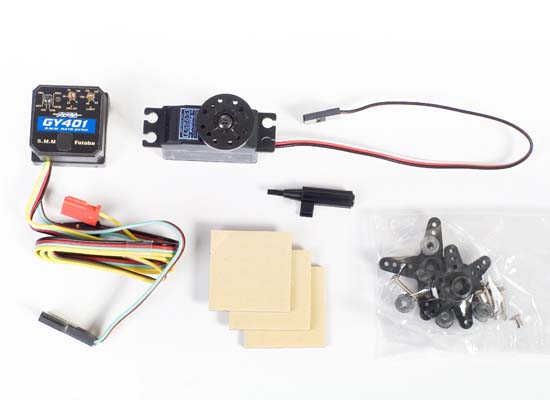

Futaba GY401 AVCS Gyro + S9257 Servo for RC EP Helicopter  [GY401+S9257]

�

Futaba #GY401 - Futaba GY401 Gyro w/SMM Technology

This is the GY401 Gyro with SMM tech from Futaba.
This is a High Performance, Compact and Light Weight
(AVCS) Angular Vector Control System gyro developed for model helicopters.
Because the sensor and control circuit are incorporated, it is an easy task to install.

QUALITIES:

AVCS System: because the rudder trim modifications (caused by wind and other
meteorological modifications); leading, rear, and other heli attitudes
change and they are automatically canceled; tail (rudder) operation is
easy, making it perfect for 3D flight.
(also known as heading hold gyro)
SMM Gyro Sensor: usage of this newly developed technology virtually
eliminates rudder trim changes during trip (see COMMENTS).
Digital Servo Compatible (DS Mode): DS mode makes it compatible with
Futaba electronic servos. This maximizes the high-speed response
performance of this electronic servo.
Remote Gain Function and Mode Switching Function Remote: Gain
function enables sensitiveness switching from the transmitter and mode
switching function allows AVCS/normal gyro mode switching.
incorporated, lightweight and lightweight design authorized by high
density mounting technology.
Conductive Resin Case: This instance improves EMC (Electrostatic and
electromagnetic disturbance) opposition.

INCLUDES: One GY401 gyro
One mini synthetic adjustment screwdriver
Three mounting pads
One instruction sheet

SPECS: GY401 Gyro-
Length: 27mm
Width: 27mm
Height: 20mm
Weight: 27g

COMMENTARY: may be used in helicopters and airplanes (as a result of 0-100percent Gain Adjust).
The brand new SMM (Silicone Micro device) technology may be the integration
of mechanical elements, sensors, actuators and electronics all
brought together on a typical substrate chip. This hobby industry
first, leads to a gyro sensor with an unprecedented degree of
functionality, reliability, and elegance.
This wont assist the JR digital servos. These have a different
pulse.

Futaba S9257 Servo

• Volts: 4.8V - 6.0V
• Torque: 23oz-in
• Speed: 0.08 sec/60
• proportions: 1.4 x 0.6 x 1.1 in.
• body weight: 0.9 oz.
