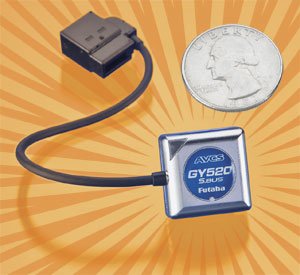

Futaba GY520 Gyro  [GY520]

FEATURES:

• Ultra small and light weight gyro contained in one unit-no separate sensor and control device
• Uses a high speed advanced level PID (Proportional-Integral-Derivative) control algorithm Latest MEMS (Micro-Electro-Mechanical techniques) allows complete control system on a single chip
• Delivers superior performance with analog servos and excels with electronic servos
• F3C and 3D mode selectable, six programmable parameters
• Operates at quite high rate; 280Hz into the 1520uS mode and 506Hz inside 760uS mode
• Programmable through solitary button and multi-color Light-emitting Diode or through a PC using Futaba
• CIU-2 USB adapter
• Registered AVCS (Angular Velocity Control System) architecture achieves unmatched end keeping capability

INCLUDES: Futaba GY520 Heading Hold Gyro, guide, one each 13" (330mm) lead with red connectors and lead with black colored connectors two sections of sensor tape, mini screwdriver and guide

REQUIRES:

Digital or analog servos

SPECS:

• Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
• Voltage Range: 3.8 - 6.0V DC
• Control System: Advanced PID control
• Present Draw: 40mA (without servo)
• Sensor: MEMS vibrating framework gyro
• Operating Temperature: 14?FXF - 113?FXF (-10?FXC - +45?FXC)
• Sensor speed Range: +/- 800?FX sec
• Angular Velocity number: +- 800 deg/sec
