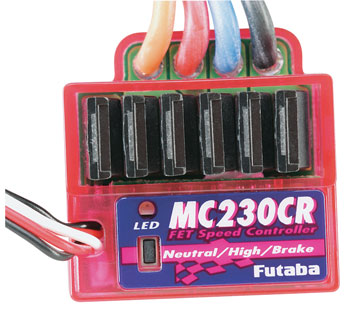

Futaba MC230CR ESC w/Reverse 20+T  [MC230CR]

This will be a MC230CR Electronic Speed Control w/ Reverse for 20+ Turn Motors.

QUALITIES:

• Operates engines which can be 20 turns up to 27 turns (Stock Motors)
• All connectors are pre-installed
• One-touch set-up with set-up Light-emitting Diode.
• Completely proportional forward and reverse
• Includes Reverse Disable so it is legal for ROAR racing
• Heat/overload/short circuit protection
• Low-battery function immediately cuts motor power whenever energy levels become too low.
• Receiver reminder switch beeps to remind you to definitely turn OFF the receiver and the car will pulse (not run) forward as an additional reminder.
• Brake

INCLUDES:

• One MC230CR Electronic Speed Control w/ Reverse, Futaba J receiver connector, bullet connectors, standard kind battery connector and ON/OFF switch.
• One Set-Up Screwdriver (FUTM5685)
• One Instruction Sheet

REQUIRES:

• Futaba J plug appropriate receiver
• Feminine bullet motor connectors for motor, use TRIC5500.

SPECS:

• Capability: 6 to 7 mobile batteries
• Motor Limit: 20+ turns
• Current- Forward: 90A Reverse: 45A
• On resistance: .0035 Ohms
• High Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for Battery, Bullet Motor (all pre-installed)
• Bullet Engine Wire: 16 measure
• BEC: Yes (6V) (1 amp)
• Length: 1.07" (27.1mm)
• Width: .50" (12.7mm)
• Height: 1.31" (33.3mm)
• Weight: 1.55oz (44g)

REMARKS:

Generally speaking, high-torque and brushless servos for steering control may be used with this particular ESC as long as the continuous present draw for the servo cannot surpass 1A constantly. Don't use the Futaba S9157 high-torque servo with this particular ESC as this servo attracts over 3A."
