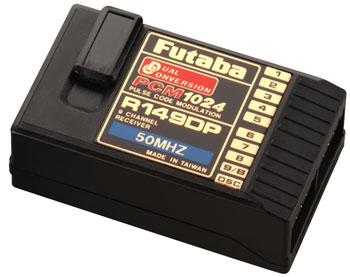

Futaba R149DP 9-Channel PCM Rx 50MHz/ 72MHz High w/o Crystal  [R149DP]

Futaba (#R149DP) - Futaba R149DP 9-Channel PCM Rx 72MHz High w/o Crystal

NOTES FROM OUR TECH DEPARTMENT
This is a R149DP 9-Ch 72MHz PCM 1024 Dual Conversion Receiver Without Crystal.
This is a higher Band (channel 36-60) receiver without a crystal (see NEEDS).

QUALITIES: Narrow-band spacing and double conversion sign filtering combined to
provide extremely clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who would like to make use of an individual radio transmitter
to travel several different model aircraft. Especially pilots who are
utilizing computerized radios with multi-model memory.

INCLUDES: One R149DP Miniature 9 Channel 72MHz PCM 1024 Receiver

NEEDS: One FUTL58** Dual Conversion Receiver Crystal

SPECS: Narrow Band: 20KHz
Intermediate Frequency- 1st IF: 10.7MHz
2nd IF: 455kHz
Power demands: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 15mA
Length: 2.16" (55.0mm)
Width: 1.27" (32.0mm)
Height: 0.82" (21.0mm)
fat: 1.2 oz (36g)
COMMENTS: 1024 Resolution isn't appropriate for Older PCM 512 techniques.
For the transmitter/receiver crystal set, usage FUTL20**.
For the High Band, use FUTL0903.
Special Notice about Frequency Changes-
*72MHz- Low band stations 11 to 35; High band stations 36 to 60.
Receiver crystal stations (11-35 or 36-60) Within Each Band
Can Be Changed, and don't Require a retuning for the receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high musical organization, OR from high to low musical organization without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz Frequency Bands can't under any
circumstances be interchanged together. 72/75:receiver Must
be submitted for retuning to your appropriate band. 50/27: can't do.
*50MHz, 27MHz and 75MHz receiver crystals may be changed anywhere
within the particular bands. There are not any high or low bands such
as the 72MHz band has.
*Transmitter Crystals cannot be changed to some other channel except
by a licensed solution center. It is against FCC laws, and
illegal the user to alter a frequency determining component
of a transmitter. If the radio isn't retuned, it can be a hazard
spectators, modelers or property, and void AMA coverage.
*Check because of the neighborhood R/C club the frequencies found in your area
