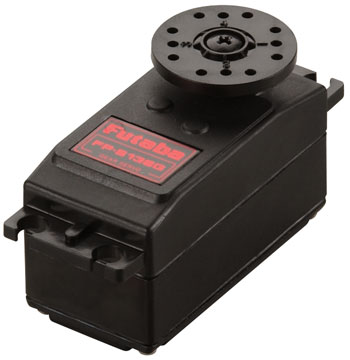

Futaba S136G Compact Retract Servo  [S136G]

The S136G Compact Landing Gear Retract Servos are extra-flat
so they will squeeze into a wing.

This servo can produce high-current draw from your own batteries.
If using NiMH or Li-Po batteries, get them to capable
of delivering adequate Amps.

FEATURES: Two Ball Bearings
Metal Gear Set
3-pole motor
Compact Size
Travels 180 levels - full-lock to full-lock -- to hold your gear in
position firmly. Not proportional. Perfect for mechanical
retract installation. (see COMMENTS)
One-Year Warranty.

INCLUDES: One S136G Compact Retract Servo w/ J Connector

SPECS: Length: 1.8" (46mm)
Width: 0.9" (23mm)
Height: 1.0" (25mm)
Torque: 92 oz/in @ 4.8V (6.6 kg/cm @ 4.8V)
Speed: .58 seconds/60 levels @ 4.8V (it actually travels 180 degrees
see COMMENTS)
Weight: 1.5 oz (42g)

REVIEWS: A retract servo is a really specialized servo. It's non-proportional,
going 180 degrees, "lock to lock". They are particularly made for
mechanical retracts to secure kit into the down and up jobs.
and Don't have any way of end point modification and cannot be
adjusted by ATV on a transmitter. They have been only capable get 180
degrees and supply complete optimum available torque during the two end
points. This will be their entire purpose and intentional design, but if
someone has a unique design situation where they require other than
180 degrees available, they need to utilize a proportional servo, perhaps not a
retract servo. They truly are created specifically to withstand constant
holding lots in the down and up positions, unique towards use of
mechanical retracts.
Pneumatic retracts don't need a retract servo. A proportional
standard or mini servo is used to maneuver the atmosphere valve back and forth
