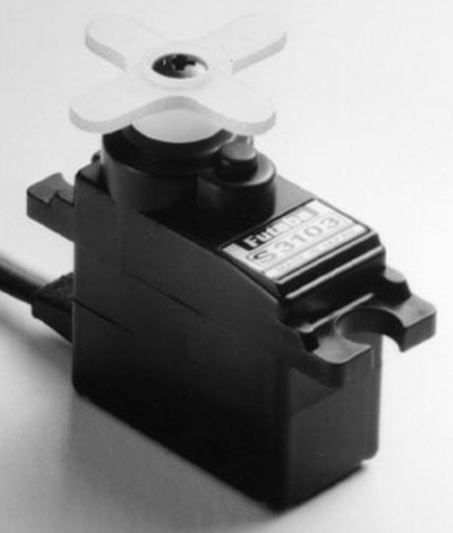

Futaba S3103 Servo Micro Mini  [S3103]

This is actually the S3103 Micro Mini Precision Servo
Designed for use with Futaba broadcast Control Systems.
This Servo Takes the spot regarding the S133 Servo and has Less Torque.

This servo can create high-current draw from your batteries.
If making use of NiMH or Li-Po batteries, cause them to become capable
of delivering enough Amps.

QUALITIES: Small Compact Design for Small Electrical Motor Airplanes.
3-pole motor

INCLUDES: One S3103 Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings) FUTM23500

SPECS: Speed: .11 sec/60 deg @ 4.8V - .09 sec/60 deg @ 6V
Torque: 17 oz/in @ 4.8V - 21 oz/in @ 6V
1.2 kg/cm @ 4.8V - 1.5 kg/cm @ 6V
Length: 23mm (.9")
Width: 10mm (.4")
Height: 20mm (.8")
Weight: 9.5g (.3oz)

OPINIONS: The S3103 Servo may not be used in combination with Gasoline motor Airplanes and
with Large Gliders and Other versions that need Torque.
The Use of a Large Load at a High Power Supply Voltage Will Shorten-
the use lifetime. (4.8V Recommended)
The Accessory Servo Horn is Designed for Use Using this Servo just.
Conventional Servo Horns May Not Be Applied. Always Use the Special
Servo Horn.
ir/jl
9-15-00 UPDATE
The newest shipment of those sevos are now actually coming with white servo hands, which
some customers may mistake for Hitec. They're not Hitec. They look like they
will fit, but the consumer operates the possibility of stripping the production shaft if
they make an effort to use them on Hitec.
