Futaba S3108 Micro Servo  [S3108]

Futaba S3108 Micro Servo
Price:
USD$33.20
Brand:
Futaba
Model:
S3108
Condition:
Brand New
Write a review
The Micro Servo produced by Futaba, is classified in R/C Models - System - Servo - Micro Size Servos

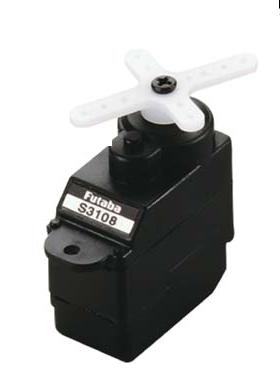

Here is the S3108 Micro Servo from Futaba servo, that is employed for R/C park flyer airplanes.

This servo can produce high-current draw from your own batteries.
If using NiMH or Li-Po batteries, make sure they are with the capacity of delivering enough Amps.

FEATURES:
Delivers excellent torque and rate because of its little size and lightweight
Special four point micro servo horn
Extremely light weight, perfect for little planes and park flyers
Can be used for elevators, ailerons and rudders
Twelve months limited warranty

INCLUDES:
One S3108 Micro Servo with Futaba J male connector, servo horn, and guarantee sheet

REQUIRES: Servo mounting screws (FUTM2350), installing in model

SPECS:
Speed: 0.12 sec/60 deg @ 4.8V
Torque: 17 oz/in @ 4.8V
Measurements: Length: .9" (21.8mm)
Height: 0.8" (19.8mm)
Weight: 0.27 ounce (7.6 grams)
Servo horn size at longest point: 0.90" (23mm)
Servo horn size at shortest point: 0.62" (16mm)
Connector: Male "J" type with approx. 5" (126mm) cable

OPINIONS:
This servo cannot be used with gas machines or large/middle scale gliders or other models that require torque. Usage of 6.0V not recommended as this can shorten servo life.

This servo has the standard Futaba J connector.If requiring the micro connector and person would purchase FUTM0700.
Micro Extension is FUTM4508.
For replacement horn set use component # HRCM5708 (per jpg)
No gear set available, per FUTABA.
