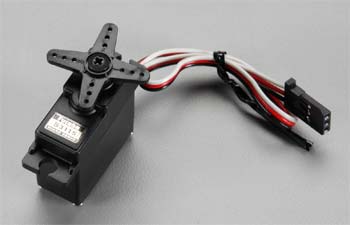

Futaba S3115 Micro Precision Servo  [S3115]

This is the Futaba S3115 Micro High Torque Servo. It replaces the Futaba S3101 Servo.
This servo can create high-current draw from your own batteries if making use of NiMH or LiPo batteries, make sure they are capable of delivering adequate amps.

QUALITIES:
Perfect for electric planes and little electric helis
Nylon gears
One year warranty


INCLUDES:
Futaba S3115 Micro Tall Torque Servo
One 1" (25.4mm) 4 arm servo horn (set up on servo)
One 1.5" (39mm) 4 supply servo horn
One 1.75" (45mm) right servo horn
One 1.4" (35mm) diameter circular servo horn
Two eyelets
Two rubber grommets
Two 2x12mm washer mind self threading screws (phillips mind)


REQUIRES:
Installing in aircraft and linking to receiver


SPECS(4.8V):
Torque: 39 oz-in (2.8 kg/cm)
Speed: 0.15 sec/60�X
Measurements: 1.1 x 0.5 x 1.2" (28 x 13 x 30mm)
Body weight: 0.60oz (17g)
Lead Length: 6.5" (165mm)


OPINIONS:
Don't use S3115 servos with gasoline or high power motor models, big gliders, or other models that need high torque
Making use of supply voltage more than 4.8V or applying high load on servo will shorten living. Always utilize the servo horn particularly created for this servo.
Do not use mainstream servo horns.
Excessive force or surprise to the servo horn may damage the ultra mini accuracy gears inside the servo.
For replacement gears use part number FUTM3404
