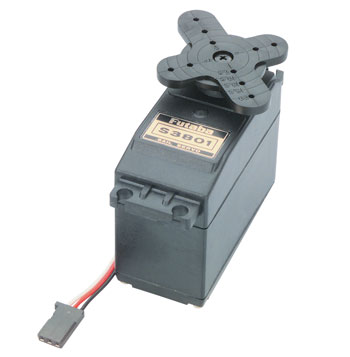

Futaba S3801 Servo Heavy Duty Arm Type Sail Control [S3801]

Price:

USD$57.70

Brand:

Futaba

Model:

S3801

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - System - Servo - Standard Servos category

Write a review

Description

The Servo Heavy Duty Arm Type Sail Control produced by Futaba, is classified in R/C Models - System - Servo - Standard Servos

This really is a higher Torque, Arm-Type Sail Servo with a Metal production Gear for ship applications needing around 200 oz-in torque.
Futaba items have One-Year Warranty.

This servo can create high-current draw from your own batteries if using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

QUALITIES:
Steel production gear as well as the other gears are nylon
Two Ball Bearings
3-pole motor
Sail Arm included (FSH38)-(FUTM2258) plus standard 4-point supply
Exact same instance as S134 servo
Liquid and Dust resistant

INCLUDES:
One S3801 Tall Torque Sail Servo w/ J Connector

SPECS:
Torque: 156 oz-in @ 4.8V - 194 oz-in. @ 6V
11.2 kg-cm @ 4.8V - 14.0 kg-cm @ 6V
Transit Time: 0.30 sec/60�X @ 4.8V - 0.26 sec/60�X @ 6V
Supply Travel: 125�X (under optimum conditions)
Length: 2.3" (59mm)
Width: 1.1" (29mm)
Height: 2.0" (50mm)
Body weight: 3.8oz (107g)
