Futaba S5302 Servo High-Speed 1/4 Scale [S5302]

Price:

USD$93.00

Brand:

Futaba

Model:

S5302

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - System - Servo - Standard Servos category

Write a review

Description

The Servo High-Speed produced by Futaba, is classified in R/C Models - System - Servo - Standard Servos

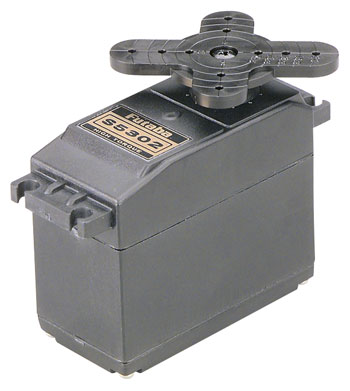

This is actually the S5302 High Speed 1/4 Scale Servo from Futaba.
This servo is used for R/C airplanes, sailplanes, gasoline cars and power ships.

This servo can produce high-current draw from your own batteries.

If utilizing NiMH or LiPo batteries, get them to effective at delivering enough amps.

QUALITIES:

Dual ball bearing
Metal gear
5-pole engine
High torque
Dust and water resistant

INCLUDES:

One S5302 High Speed 1/4 Scale Servo with Futaba J male connector
Four metal eyelets
Four large Black one-piece rectangular plastic grommets
Four 2 x 11mm servo mounting screws
Three servo horns (1 lg. round, 1 lg."X" and 1 sm. 6-point)

SPECS:

Speed: .19 sec/60? @ 4.8V - .15 sec/60? @ 6V
Torque: 189 oz-in @ 4.8V - 236 oz-in @ 6V
13.6 kg-cm @ 4.8V - 17.0 kg-cm @ 6V
Length: 2.3" (59mm)
Width: 1.2" (29mm)
Height: 2.0" (50mm)
Body weight: 4.4 ounce (125 grams)
Connector: Male "J" kind with approx. 5" wire
