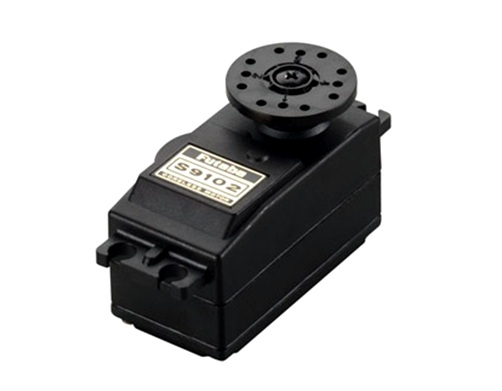

Futaba S9102 Servo Aileron [S9102]

Price:

USD$83.00

Brand:

Futaba

Model:

S9102

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - System - Servo - Low Profile Servos category

Write a review

Description

The Servo Aileron produced by Futaba, is classified in R/C Models - System - Servo - Low Profile Servos

This is a Futaba S9102 Aileron Servo designed for In-Wing applications. It could create high-current draw from your own batteries if making use of NiMH or LiPo batteries, make sure they are with the capacity of delivering enough amps.

QUALITIES:
Two Ball Bearings
Coreless Engine
Nylon Gears
Thin Profile
Dust and Waterproof
Twelve months warranty

INCLUDES:
One S9102 Aileron Servo w/J Connector

SPECS:
Length: 1.8" (40mm)
Width: 0.9" (20mm)
Height: 1.4" (36mm)
Weight: 1.7oz (48g)
Torque: 40 oz-in (2.9kg/cm) @ 4.8V
50 oz-in (3.6kg/cm) @ 6V
Transit Speed: .16 sec/60�X @ 4.8V, .13 sec/60�X @ 6V

REMARKS:
For Gromments order, FUTM2346
For Eyelets purchase, FUTM2347
For Mounting Screws, order FUTM2250
