The Servo Digital Aileron produced by Futaba, is classified in R/C Models - System - Servo - Low Profile Servos

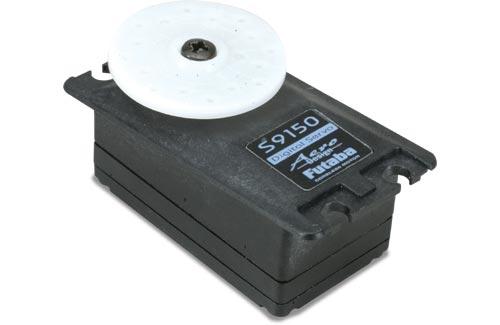

This is actually the Futaba S9150 Digital Aileron Servo with J Connector.
Designed for aileron applications on model aircraft.
This servo can create high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, make sure they are capable
of delivering adequate Amps.
FEATURES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut in half the reaction time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is very fitted to wing installations
Black synthetic case
One year guarantee
INCLUDES: One S9150 Digital aileron servo 1-3/4" (44mm) diameter servo wheel,
1-1/4" (32mm) diameter servo wheel, one six point servo wheel,
four brass grommets, four mounting screws and two plastic mounts.
SPECS: Speed: 0.18 sec/60 deg @ 4.8V
Torque: 81 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25)
Weigth: 1.9 oz (53g)
power: 4.8V (Futaba doesn't suggest utilizing 6V)
REVIEWS: S9150 Digital Servo Precautions,
-It is best to avoid long leads and Y-harnesses specially with
standard grade cables. If problems are experienced, consider using
heavy duty wire such as Futaba's durable Series or Hobbico's
Pro Series,minimizing lead lengths, and/or getting rid of Y-harnesses.
-Current Drain: This electronic servo is especially created for high-
torque or high-speed, consequently quite high current drain is normal
at startup. For ultimate performance when working with this servo please
review these points.
1. Broadcast systems with all the Battery Fail Safe function have actually a
higher cut-off voltage environment that'll cause shorter
operation time.
2. When setting up the servo, please always check pushrod linkage to
make yes there's absolutely no binding in order to prevent excessive
power consumption and decrease the life of motor and
battery.
This electronic servo can't be used with the next * AM *
transmitters due to the fact servo neutral signal is: 1310us).
CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they'll work fine with present AM systems *****
** no other arms will continue to work with this, has a distinctive spline size.
