The Digital Mega High Torque Servo produced by Futaba, is classified in R/C Models - System - Servo - Standard Servos

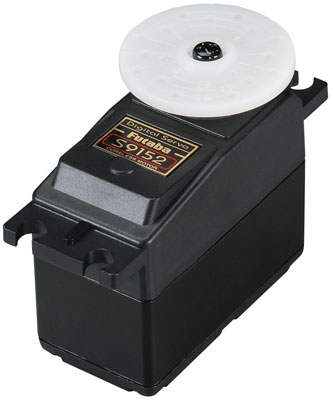

This is actually the Futaba S9152 Mega tall Torque Digital Rudder Servo.
Comes with "J" Connector Pre-Installed.
QUALITIES: durable wiring handles higher current loads
New steel center casing helps dissipate temperature and is made to be
water and dust proof
Coreless motor
High Torque
One year guarantee
INCLUDES: One Futaba S9152 Digital Rudder Servo
Two rectangular grommets
Four brass bushings
Four 3mm x 15mm self tapping phillips head mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: .19 sec/60 degrees @ 6V
Torque: 278 oz/in @ 6V ( 20.0 kg/cm )
fat: 3 oz (84g)
Length: 1.91" (48.6mm) situation only
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting opening facilities exact same side: 0.55" (14mm)
Distance between mounting hole facilities opposite side: 2.35" (59.6mm)
COMMENTS: S9152 Digital Servo Precautions,
-It is better to prevent long leads and Y-harnesses particularly with
standard grade wires. If dilemmas are experienced, consider using
heavy responsibility cable such as for instance Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9152 Servo is Specially Designed for High-
Torque and High-Speed, Therefore quite high Current Drain Is
Normal At business. For Ultimate Performance When Using This Servo
Please Review The Following Points.
(1) When working with Systems With All The Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting That May Cause Shorter
Operation Time.
(2) When setting up the Servo Please always check Pushrod Linkage To Make
Sure there is absolutely no Binding so that you can avoid Excessive Power
Consumption and reduce the Life of Motor and Battery.
This digital servo can not be combined with the following * AM *
transmitters once the servo neutral sign is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they are going to work fine with current AM systems *****
OPINIONS: Servo Accessory Package (FUTM2042) includes both big horns and
all mounting equipment mentioned above.
Replacement Case Set is FUTM3071.
Replacement Gear Set is FUTM3452.
A note on coreless engines. The standard servo motor has a steel
core armature wrapped with with cable that spins within the magnets.
In a coreless design, the armature makes use of a thin wire mesh that forms
a cup that spins round the not in the magnet eliminating the
heavy steel core. This design is significantly lighter leading to smoother
operation and quicker reaction time.
