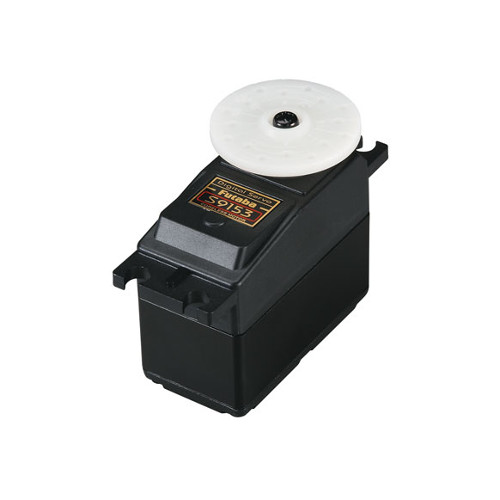

This is the Futaba S9153 Digital Aileron/Elevator Servo.
Comes with "J" Connector Pre-Installed.
FEATURES: high quality wiring handles greater current loads
Metal center casing which helps to dissipate heat and it is designed to
be water and dust proof
Coreless motor
High torque
One year warranty
INCLUDES: One Futaba S9153 Digital Aileron/Elevator Servo
Two rectangular grommets
Four brass bushings
Four 3mm x 15mm self tapping phillips mind mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: 0.15 sec/60 levels @ 6V
Torque: 208 oz/in @ 6V ( 15 kg/cm )
Weight: 3 oz (85g)
Length: 1.91" (48.6mm) instance only
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting gap centers same side: 0.55" (14mm)
Distance between mounting gap facilities opposite part: 2.35" (59.6mm)
REVIEWS: S9153 Digital Servo Precautions,
-It is best in order to avoid long leads and Y-harnesses particularly with
standard grade cables. If dilemmas are encountered, consider using
heavy duty cable such as for example Futaba's Heavy Duty Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9153 Servo is specifically Designed for High-
Torque and High-Speed, for that reason quite high Current Drain Is
Normal At Startup. For Ultimate Performance When Utilizing This Servo
Please Review The Following Points.
(1) When Using Systems Because Of The Battery Fail Safe Function it Has
a Higher Cut-Off Voltage Setting That'll Cause Shorter
Operation Time.
(2) When setting up the Servo Please check always Pushrod Linkage To Make
Sure there's absolutely no Binding to be able to avoid Excessive Power
Consumption and reduce steadily the Life of the engine and Battery.
This electronic servo may not be combined with the next * have always been *
transmitters since the servo basic sign is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they'll work fine with present AM systems *****
COMMENTS: Servo Accessory Package (FUTM2042) includes the 2 big horns and
all mounting equipment mentioned above.
Gear Set can be obtained individually, FUTM3453.
Case Set can be acquired separately, FUTM3071.
A note on coreless engines. The standard servo engine has a steel
core armature wrapped with with wire that spins in the magnets.
In a coreless design, the armature uses a thin wire mesh that forms
a cup that spins across the outside the magnet eliminating the
heavy steel core. This design is much lighter resulting in smoother
operation and faster reaction time.
