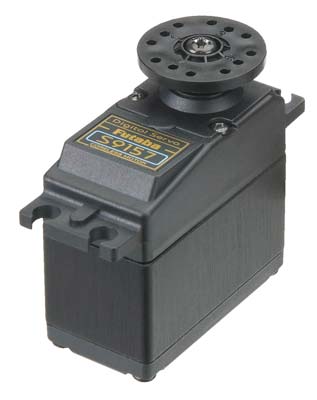

Futaba S9157 - High Torque Digital Servo for RC Models [S9157]

Price:

USD$138.00

Brand:

Futaba

Model:

S9157

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the

R/C Models - System - Servo - Standard Servos

Futaba S9157: Precision and Power for Your RC Needs

The Futaba S9157 Digital Hi-Torque Servo is designed to deliver exceptional power and precision, making it an excellent choice for serious RC hobbyists. With its coreless motor and dual ball bearings, this servo provides smooth operation and quick response times, tailored for large competition airplanes and demanding RC setups.

Unmatched Performance Features

The S9157 stands out with its robust construction and advanced features. It includes a metal middle case for efficient heat dissipation, ensuring cooler operation even under heavy use. The servo's impressive torque of 425oz-in (30.6kg/cm) at 6V makes it suitable for high-demand applications, while a speed of 0.14 sec/60° at 6V guarantees rapid and precise movements.

Specifications

Torque: 425oz-in (30.6kg/cm) @ 6V
Speed: 0.14 sec/60° @ 6V
Dimensions: 1.6 x 0.8 x 1.5" (41 x 21 x 37mm)
Weight: 2.5oz (71g)
Horn Screw Size: 3x8mm

The Futaba S9157 is ideal for RC enthusiasts seeking a reliable and powerful servo for competitive or advanced model setups. Its combination of strength, speed, and durability makes it a valuable addition to any serious RC toolkit.

What type of battery should be used with the S9157?

The S9157 servo is recommended for use with NiCD batteries only.

How does a coreless motor improve performance?

Coreless motors eliminate the heavy steel core, using a thin wire mesh armature that spins around the magnet, resulting in smoother operation and faster response times.
