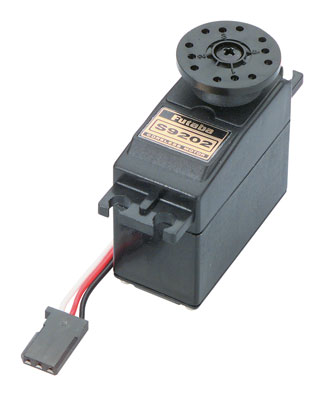

Futaba S9202 Ball Bearing Coreless Aircraft Servo  [S9202]

Here is the S9202 Ball Bearing, Coreless Servo designed for Aircraft, and
helicopters. The S9202 replaces the S9201 and has now nylon gears.
Futaba products have a 1-Year Warranty for defects in materials & workmanship.

This servo can create high-current draw from your batteries.
If making use of NiMH or Li-Po batteries, get them to capable
of delivering adequate Amps.

This is simply not dustproof as could be the S9304, hence isn't suggested for automobiles and
trucks. This is not a requirement for servos found in planes.

INCLUDES: One S9202 Coreless servo with 2 Ball Bearings
One Accessory Bag (mounting equipment and horns)

SPECS: Length: 1.6" (41mm) Width: 0.8" (20mm) Height: 1.4" (35mm)
Torque: 76 oz/in @ 4.8V - 98 oz/in @ 6V
(5.5 kg/cm @ 4.8V - 7.1 kg/cm @ 6V)
Transit Time: .26 sec/60 deg @ 4.8V - .21 sec/60 deg @ 6V
Weight: 1.8 oz (50g)

OPINIONS: an email on coreless motors. A conventional servo motor has a steel
core armature covered with with cable that spins in the magnets.
In a coreless design, the armature makes use of a thin cable mesh that forms
a glass that spins around the outside of the magnet eliminating the
heavy metal core. This design is significantly lighter leading to smoother
operation and quicker response time.
