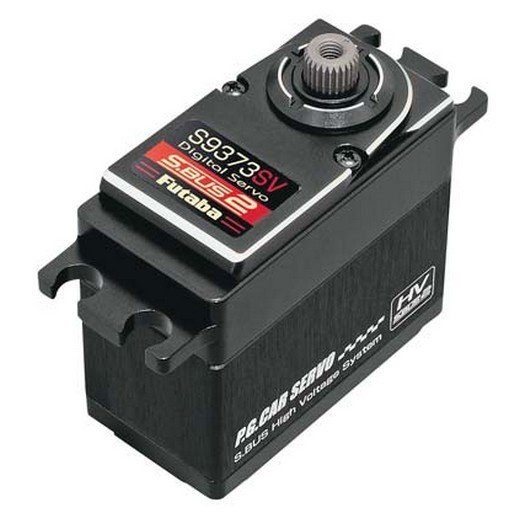

Futaba S9373SV - S.Bus2 HV High-Torque Servo (76g/0.06sec/24.6kgf/7.4v)   [S9373SV]

Futaba S9373SV - S.Bus2 HV High-Torque Servo (76g/0.06sec/24.6kgf/7.4v)
Price:
USD$142.70
Brand:
Futaba
Model:
S9373SV
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - System - Servo - Standard Servos category
Write a review
The S.Bus2 HV High-Torque Servo 76g/0.06sec/24.6kgf/7.4v produced by Futaba, is classified in R/C Models - System - Servo - Standard Servos

Features:

  • Programmable and appropriate for S.Bus and S.Bus2 systems
  • High voltage handles additional rate and energy supplied by 2S LiPo batteries
  • Could be attached to a Computer utilising the CIU-2 USB adapter offered separately

Specifications:

  • 6.0V 7.4V
  • Torque: 280oz-in 20.1kg-cm 341.7 oz-in 24.6kg-cm
  • Speed: 0.07 sec/60° 0.06 sec/60°
  • Measurements: 1.6 x 0.83 x 1.43" (40.5 x 21.0 x 36.2mm)
  • Weight: 2.7oz (76g)

SBus Programmable Defaults:

  • Dead Band Degree: 0.11
  • Damper Factor: 144
  • Stretcher Gain: 2
  • Boost: 10
  • Basic Offset Degree: 0
  • Travel Adjust Percentage: 100percent
  • Reverse (Normal/Reverse): Nor
  • Stop Mode (Free/Hold): Hold
  • Buzzer (On/Off): Off
  • Smoother (On/Off): On
  • Boost (On/Off): Off
