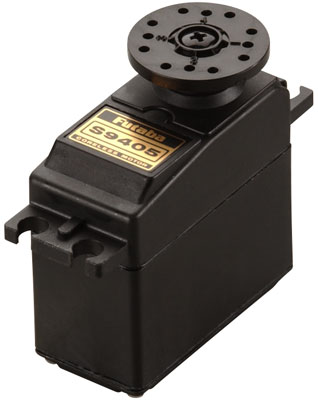

Futaba S9405 Servo Coreless High-Torque BB  [S9405]

This really is a Futaba S9405 Servo with J connector.
For usage with 1/8 Scale Nitro vehicles.
One Year Warranty

This servo can create high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, make sure they are capable
of delivering sufficient Amps.

FEATURES: Coreless engine (smoother and stronger than standard servo motors)
High torque
Dual ball bearings
Grommets that protect the inner components from dust and water
damage.
This is a partial steel gear servo (has 2 steel gears)

INCLUDES: One servo with J connector
One tiny round horn
One large circular horn
One X-shape horn
One 6-arm horn
One accessory package
Warranty card
SPECS: Speed: .14 sec/60 deg @ 4.8V - .11 sec/60 deg @ 6V
Torque: 80 oz/in @ 4.8V - 100 oz/in @ 6V
(5.8 kg/cm @ 4.8V - 7.2 kg/cm @ 6V
Weight: 1.9 oz (55g)
Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.5" (38mm)

COMMENTS:
A note on coreless motors: A conventional servo engine has a steel
core armature covered with wire that spins inside the magnets. In
a coreless design, the armature uses a thin cable mesh that forms a
cup that spins around the not in the magnet eliminating the
heavy steel core. This design leads to smoother operation and
faster response time.
