Futaba S9452 Digital High Speed/Torque Servo  [S9452]

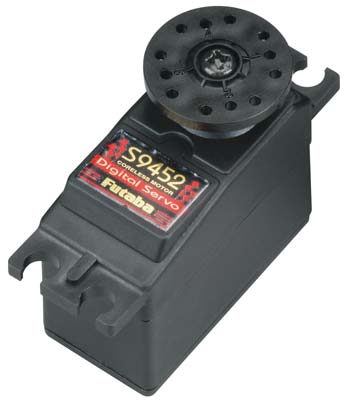

Futaba S9452 Digital High Speed/Torque Servo
Price:
USD$81.00
Brand:
Futaba
Model:
S9452
Condition:
Brand New
Write a review
The Digital High Speed/Torque Servo produced by Futaba, is classified in R/C Models - System - Servo - Standard Servos

This is actually the S9452 Digital Hi-Speed.Hi-Torque Servo for all applications, particularly, On-Road Touring Car Use and is sold with "J" Connector Installed.
This servo is designed to be utilized with 6V receiver packs.
This servo replaced the S9451 servo.


QUALITIES:

  • Digitally Improved Microprocessor Cut About half the Reaction Time From Transmitter Input To Servo Response.
  • Coreless Motor with two ball bearings on output shaft
  • Steel Gears (to change, use FUTM3432)
  • Tall Torque
  • Situation is constructed of Black vinyl with newly developed mounting flanges
  • Dust and Water-resistant (Maybe Not Waterproof)

INCLUDES:

  • One Digital Car/Boat Servo w/Small Round Horn
  • Two Rectangular Grommets
  • Four Brass Bushings (eyelets)
  • One Small Round Horn (already mounted on the servo)
  • One Three Supply Horn
  • Order FUTM2250 if mounting screws are expected

SPECS:

  • Speed: .13 sec/60?X @ 4.8V .11 sec/60?X @ 6V
  • Torque: 102 oz-in (7.4 kg/cm) @ 4.8V 128 oz-in (9.2 kg/cm) @ 6V
  • Weight: 1.8oz (50g)
  • Dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 34mm)

COMMENTS:

S9451 Digital Servo Precautions,

-It is better to prevent long leads and Y-harnesses particularly with standard grade wires. If problems are experienced, consider utilizing heavy duty cable including Futaba's Heavy weight Series or Hobbico's Pro Series, minimizing lead lengths, and/or removing Y-harnesses. Please Review These Points.

(1) when working with Systems aided by the Battery Fail secure Function this has an increased Cut-Off Voltage Setting That May Cause Shorter Operation Time.

(2) Whenever Setting Up the Servo Please Check Pushrod Linkage To Make Sure There Is not any Binding so that you can Prevent Excessive energy Consumption and Decrease the Life regarding the Motor and Battery.

This digital servo can not be combined with the next * have always been * transmitters as the servo basic signal is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.

For full performance of electronic servos, be sure to utilize them just with FM, PCM, and HRS systems. Do not use digital servos with AM systems.
