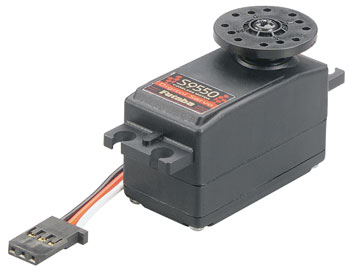

The Servo Digital Low-Profile produced by Futaba, is classified in R/C Models - System - Servo - Low Profile Servos
This is actually the S9550 minimal Profile Digital Servo w/Two Ball Bearings for
Airplane and Car usage and is sold with "J" Connector Pre-Installed.
This servo will work fine with either 4.8V or 6V receiver packages.
FEATURES: Digitally improved Microprocessor Cut About 1/2 of Response
Time From Transmitter Input To Servo Reaction.
Low Profile permits the servo to fit into wings and lay down
down in vehicle framework for less obstruction.
Coreless Motor
Metal Gears
Dual Ball-Bearings
tall Torque
Case is constructed of Black Plastic
Dust and water-resistant (Not Waterproof)
High current/Low opposition servo leads.
Ideal for F3A aileron application and 1/10 scale electric touring car
INCLUDES: One S9550 Digital Low Profile Servo w/small Round Horn
Four Rectangular Grommets
One Three Arm Horn
One Wheel Horn
SPECS: Speed: .14 Sec/60 Deg @ 4.8V or .11 sec/60 deg @ 6V
Torque: 67 oz/in @ 4.8V - 83 oz/in @ 6V
(4.8 kg/cm @ 4.8V - 6.0 kg/cm @ 6V)
Weight: 1.6 oz (45g)
Length: 1.6" (41mm)
Width: 0.8" (20mm)
Height: 1.0" (25mm)
REMARKS: S9550 Digital Servo Precautions,
-It is better in order to avoid long leads and Y-harnesses particularly with
standard grade wires. If issues are encountered, consider using
heavy responsibility wire including Futaba's heavy weight Series or Hobbico's
Pro Series, minimizing lead lengths, and/or the removal of Y-harnesses.
Current Drain: Futaba S9550 Servo is especially created for High-
Torque and High-Speed, Therefore high Current Drain Is
Normal At Startup. For Ultimate Efficiency When Working With This Servo
Please Review The Next Points.
(1) When working with Systems Using The Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting Which Will Cause Shorter
Operation Time.
(2) Whenever setting up the Servo Please Check Pushrod Linkage To Make
Sure There isn't any Binding so that you can Prevent Excessive Power
Consumption and reduce steadily the Life associated with Motor and Battery.
This digital servo can not be used in combination with these * AM *
transmitters because the servo basic sign is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they are going to work fine with present AM systems *****
