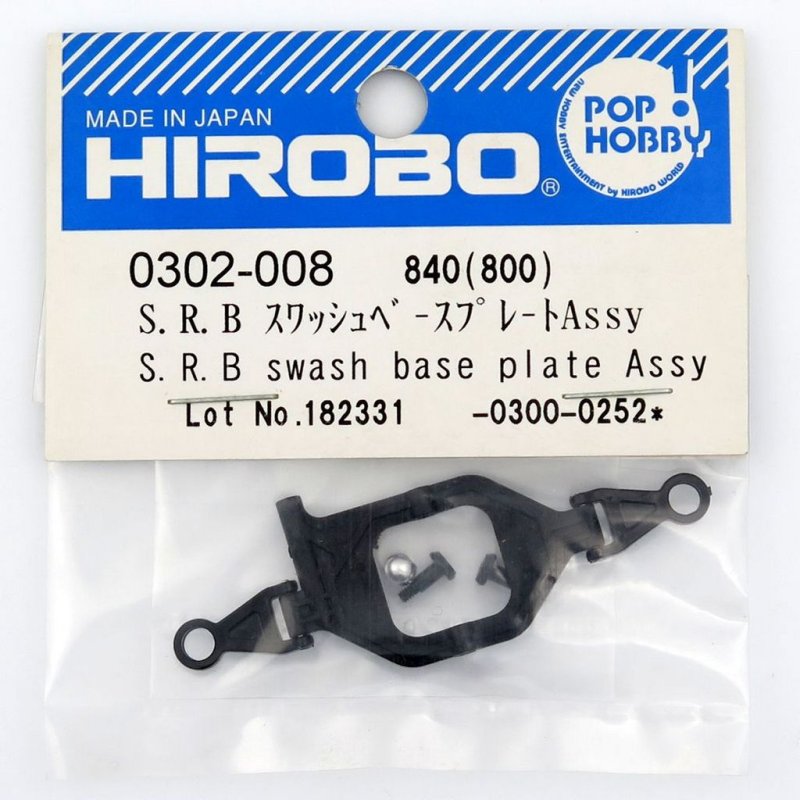

Hirobo HI0302008 SRB Swash Base Plate Assembly for SRB helicopter models  [HI0302008]

SRB Swash Base Plate Assembly

The Hirobo HI0302008 SRB Swash Base Plate Assembly is an RC-scale replacement part designed for SRB-series swashplate systems. It serves as the mounting base beneath the swash assembly and provides a stable platform for linkages and cyclic control components.

Functionally, this assembly locates and supports the lower swash interface, helping to maintain alignment between the swashplate and the tail of the rotor head. Proper seating and secure fastening of the base plate help keep servo linkages operating with minimal play, which matters when tuning cyclic response and collective behavior.

Installation notes: verify alignment of the swash assembly and confirm that all mating surfaces are clean before tightening. Use appropriate thread engagement and check that linkage ball ends move freely through their travel without binding. After installation, perform a range-of-motion check on the cyclic and collective functions to confirm smooth operation.

Maintenance and tuning role: this base plate is a service item that can affect perceived precision in pitch control. During setup and routine checks, inspect for wear, ensure fasteners remain secure, and validate servo horn and linkage geometry to reduce unwanted slop in the control system.
