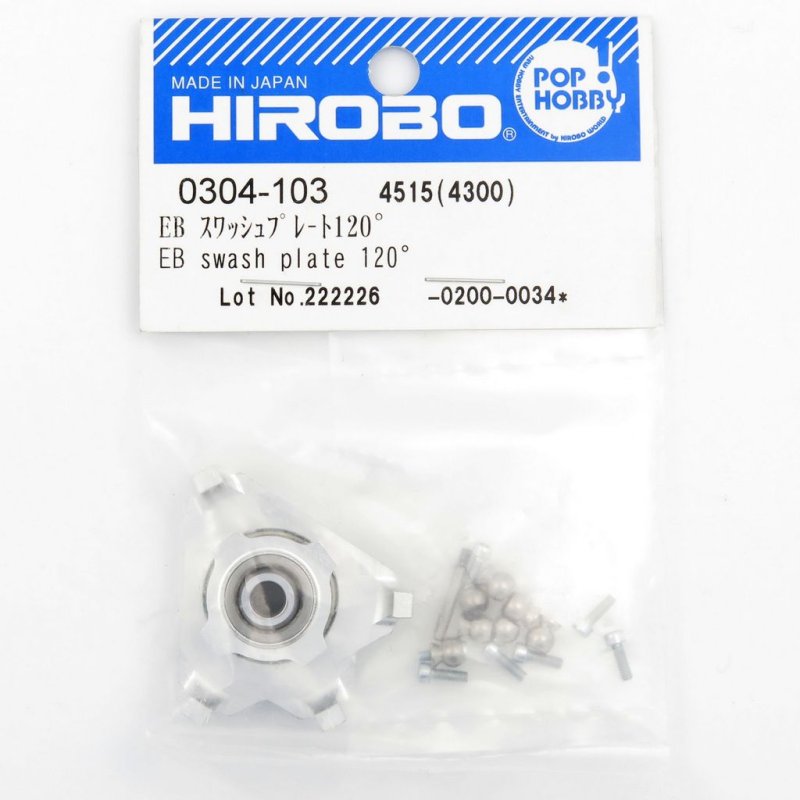

Hirobo HI0304103 Swash Plate 120 Degree for Embla EB  [HI0304103]

Swash plate for Embla EB

This swash plate is an RC-scale replacement part intended for Embla EB model helicopters. The component implements a 120 degree geometry that affects collective and cyclic linkage behavior, making it a direct fit option where Embla EB parts are required. The article below focuses on fit notes, installation considerations, and the tuning role this swash plate plays in model helicopter setups.

Functionally, the swash plate transmits inputs from multiple servos to the rotor head to control pitch and roll. A 120 degree plate alters the mechanical relationship between servo throws and rotor blade pitch compared to more common geometries, so expect changes in travel mapping and mixing requirements in your flight controller or mechanical linkages.

Installation overview: verify that control ball links and servo arm geometry align without binding, center all servos and set swash plate neutral before tightening linkages, and confirm smooth rotation through the collective range. When replacing a swash plate, record trim and end-point settings beforehand to reduce setup time after installation.

As an exact-replacement style rotor head component labeled for Embla EB use, this swash plate is intended to restore or adjust cyclic and collective response in RC helicopter maintenance and setup workflows; observe neutral positioning and servo geometry when installing to retain predictable handling.
