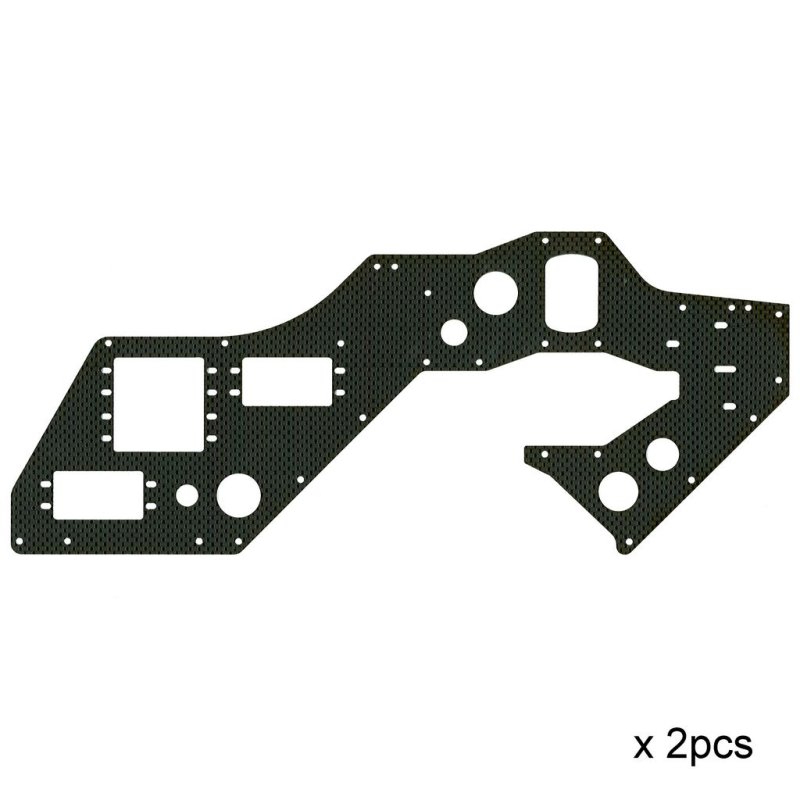

Hirobo HI0404686 Eagle EX Servo Frame  [HI0404686]

This Hirobo HI0404686 servo frame is an RC-scale replacement part designed for the Eagle family of model helicopters. It serves as the structural mounting point that secures a standard-size servo to the airframe and aligns linkages used during flight control setup. The description here focuses on compatibility, installation considerations, and the role the part plays in tuning and maintenance.

Compatibility: the frame is listed for common parts use with Eagle, Freya, EX, and SX series helicopters. When replacing a frame, confirm the mounting hole pattern and available clearance for your specific airframe and servo height to ensure proper fit without modifying surrounding components.

Installation notes: fit the frame to the designated servo bay using the original mounting screws or equivalent hardware that matches the airframe thread and length. Check for correct servo orientation before final tightening, route servo leads to avoid pinch points, and verify that linkages operate through the full control throw without binding after installation.

Tuning role: a correctly seated servo frame helps maintain consistent servo alignment, which reduces play in the control path and supports predictable feedback during trimming and cyclic/collective adjustments. During setup, use small trim corrections and test control inputs at low throttle to confirm responsiveness before full-flight testing.
