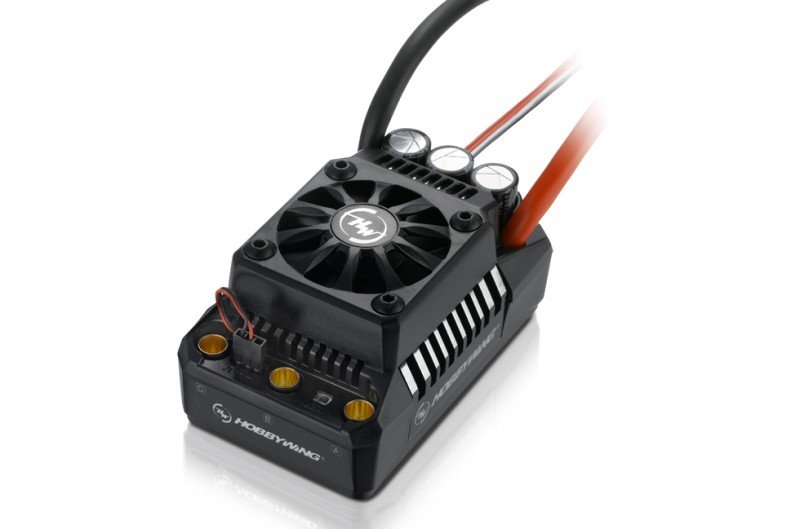

The EzRun MAX5 30104000 produced by Hobbywing, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC
High Reliability & Durability
Built with the most rugged and high-quality components and coupled with
cutting-edge firmware, the EZRUN MAX5 can deliver unmatched power
and performance even for many hardcore of rushing applications, but is also
responsive enough to safeguard itself from damage considering overloading due to real
punishment, overuse or human being mistake.
Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable
production, the MAX5 are designed for instant full-torque start-ups for
wheelies, high-speed rushing on straightaways and powering
through bumpiest landscapes. An individual may have the decision of
adjusting the ESC parameters depending on their choice and ability.
Relevant to All Weather Conditions
The waterproof and dust-proof design permits the MAX5 to be utilized in every weather
conditions without the dilemma of harm caused to your ESC from water or dust.
Tall Voltage Built-in BEC
The MAX5 has adopted the world’s first HV integrated BEC with a production present of up to 25Amp and a switchable output voltage of
6V-7.4V. The high voltage BEC was created to manage today’s high
voltage servos on need utilized by large scale vehicles.
Advanced and Secure
Electronic Switch
The MAX5 features an electronic switch with a lifespan of over
50000 on/off rounds, housed in an entirely waterproof,
dust-proof and shock-resistant design.
Regular Firmware Updates
Free of Charge
You can upgrade the MAX5 with the Hobbywing USB
LINK computer software, a multifunction LCD program field and a laptop computer.
Hobbywing updates its ESC firmware frequently providing you with
upgraded features more regularly when available.
Repair Free
The ESC without the cooling fan is basically low or zero maintenance. The cooling fan is
made to be shockproof, which will reduce damage brought on by
frequent car high jumps and landings on hard surfaces.
Wide Range of Applications
MAX5 Applications:
The EZRUN MAX 5 provides the ultimate energy update solution for most popular 1/5th scale
automobiles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric vehicle, and Desert Buggy XL
Nitro-to-Electric buggy. It’s also ideal for various other make of 1/5th scale on-road
cars, truggies, SCTs and buggies.
Product Specification
Type
- Scale : 1/5th
- Brushed/Brushless : BL
- Sensored/Sensorless : SL
- Waterproof : WP
Specifications
- Cont./Peak Present : 200A/1300A
- Input Voltage : 3-8S LiPo/9-24 Cells NiMH
- BEC Output : Switch Mode:6V/7.4V,6A
Wires & Connectors
- Input Wires : Red-8AWG-200mm*1/Black-8AWG-200mm*1
- Output Wires : Black-10AWG-200mm*3
- Input Connectors : No
- Output Connectors : 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
Fan
- Size : 45.0x45.0x10.0mm
- Voltage Number : 5-7.4V
- Powered by : Powered by BEC
ESC Programing via
- SET Button on ESC : Supported
- LED Program Box : Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : FAN/Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 93.4x58.1x47.8mm
- Weight : 342g
