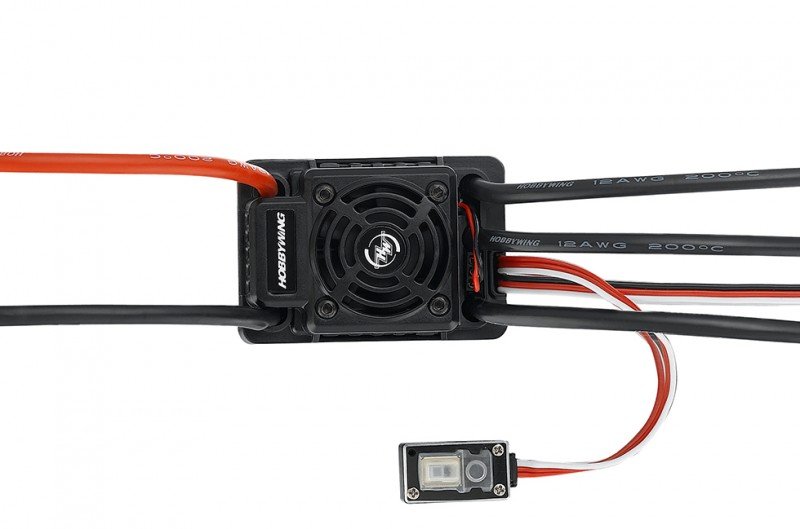

HOBBYWING EzRun WP SC8 - 81010400  [HW-81010400]

High Reliability & Durability

Reliable hardware along with higher level computer software technology allows
the EZRUN WP-SC8 not to only offer high power output but additionally
overload security of ESC circuit.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX10 to be used in every weather conditions
without the dilemma of harm caused on ESC from water or dust.

Great Flexibility & Versatility

With the strong torque and excellent output, the EZRUN WP-SC8 can
absolutely cater for all of the power hungry requirements that professional motorists require.
The extremely adjustable parameters of ESC allows drivers to enjoy
smooth throttle reaction as soon as the throttle/brake
linearity is utmost needed.

Built-in BEC

The integral switch mode BEC with a maximum output of 6Amp and voltage
of 6V get this ESC compatible with various servos.

Efficient Cooling System

Hobbywing patented heat-conductive copper club cover regarding energy board of
the EZRUN WP SC8,which can effectively and efficiently move heat
towards integrated CNC machined billet aluminum heat sink housing,
along with reticulate heatsink and superior cooling fan could well keep your ESC
as cool as you possibly can.

Ways of ESC Programming

Multiple methods for ESC development supported:
basic settings via SET key regarding the ESC,
advanced level settings via Light-emitting Diode system box/multifunction LCD program field
& Hobbywing USB LINK pc software.

Regular Firmware Updates
----Free of Charge

You can update the EZRUN WP SC8
with the Hobbywing USB LINK pc software,
a multifunction LCD program box and a laptop computer.
Hobbywing updates its ESC firmware frequently providing you with
upgraded features more frequently when available.

Item Specification

Type

• Scale : 1/10^th、1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Current : 120A/760A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : change Mode:6V/3A

Wires & Connectors

• Input cables : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output Wires : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Number : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 59.0x38.0x34.0mm
• Weight : 113g
