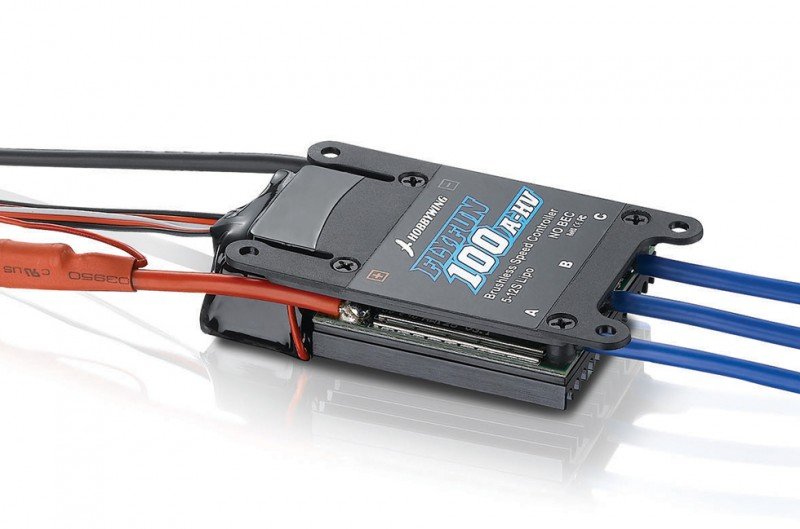

HOBBYWING FlyFun 100A HV OPTO V4 - 80020530  [HW-80020530]

Great Performance

Imported components additionally the PCB (printed circuit
board) with acutely low impedance adopted by FlyFun ESCs gurantee
great current endurance, good performance and high reliability.

Programmale Parameters

With a rich pair of programmable parameters (via a LED program
card/box), FlyFun ESC is relevant to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Multiple Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the solution life of this ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Current : 100A/120A
• Input : 5-12S LiPo
• BEC Output : No
• Output Wires : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Not Supported
• WiFi Module : perhaps not Supported
• Program Port : Separate Program Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 88.0x55.0x18.0mm
• Weight : 112g
