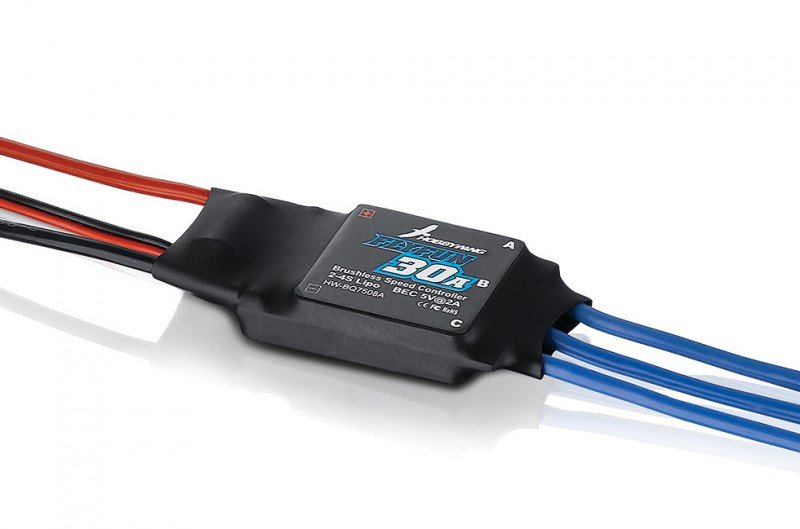

HOBBYWING FlyFun 30A V4 - 80020610  [HW-80020610]

Great Performance

Imported elements and the PCB (printed circuit
board) with extremely low impedance adopted by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich pair of programmable parameters (via a LED system
card/box), FlyFun ESC is applicable to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail Safe), and low voltage
cutoff effectively prolongs the service life regarding the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 30A/40A
• Input : 2-4S LiPo
• BEC production : Linear mode:5V,2A
• Output Wires : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Gold Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : Not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : Not Supported

Size & Weight

• Size : 55.0x25.0x9.0mm
• Weight : 26g
