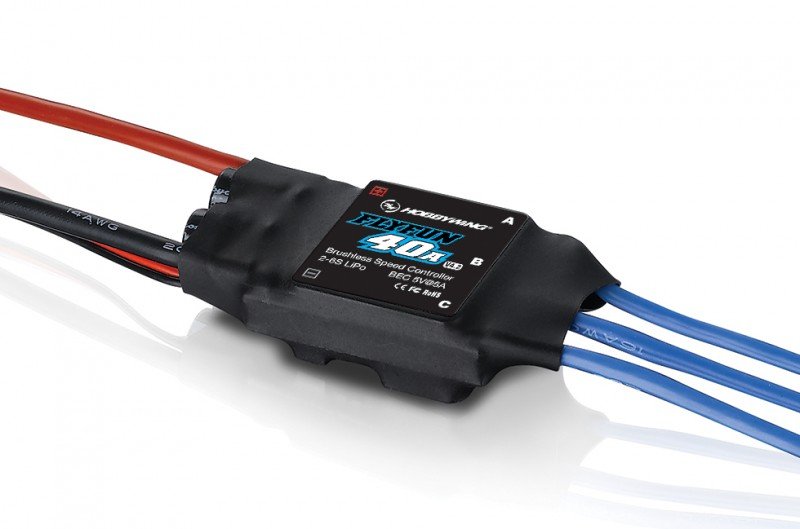

HOBBYWING FlyFun 40A V4.2 - 30214000  [HW-30214000]

Great Performance

Imported elements therefore the PCB (printed circuit
board) with exceedingly low impedance adopted by FlyFun ESCs gurantee
great current endurance, good performance and high dependability.

Programmale Parameters

With a rich group of programmable parameters (via a LED system
card/box), FlyFun ESC is relevant to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Multiple Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage
cutoff effortlessly prolongs the service life associated with ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 40A/55A
• Input : 2-6S LiPo
• BEC production : Linear mode:5V,3A
• Output cables : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Gold Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : Not Supported
• LCD Program Box : Not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 60.0x28.0x15.0mm
• Weight : 39g
