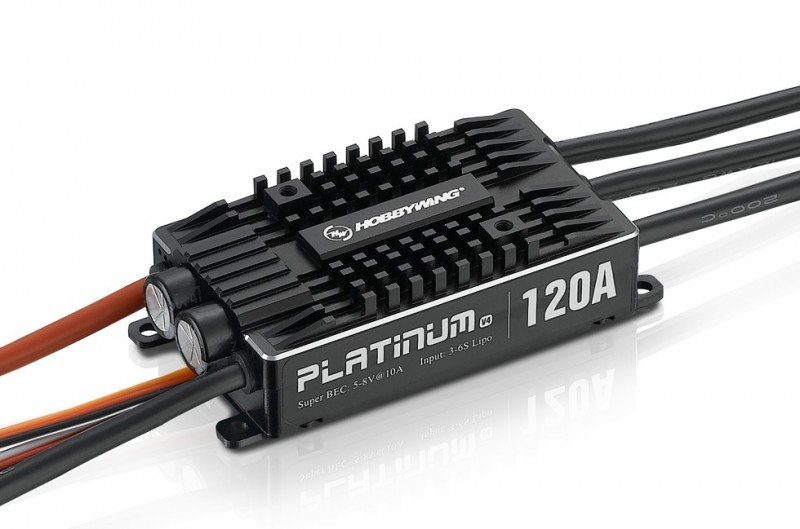

HOBBYWING Platinum 120A V4 - 30203401  [HW-30203401]

Super smooth Start-up

Platinum V4 serial items enables the engine to start extremely smooth
and avoids tail-drift problems that helicopters experience. The start-up time
is adjustable from 8 to 25 seconds, this may surely produce an amazing
starting place for every single flight.

Excellent engine Speed Governing

High-performance 32-bit processor with a prossesing regularity of 72MHz coupled with
advanced algorithm optimizes the speed governing. Together with the adjustable governor
parameters it'll guarantee every pilot a precise and efficient control experience.

Other Features

A split program slot for connecting programmer on this ESC permits individual to
● Program ESC,
● Check trip information include minimal voltage, maximum heat, standardized RPM and
speed bend (in Heli Governing shop mode) associated with journey parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD system field or a WiFi Module & our
Apple/Android phone App.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The braking system amount is adjustable in
normal braking system mode; in proportional brake mode, the brake force will likely be
automatically chosen based on the position of radio throttle stick; in reverse
braking system mode, the motor rotation can be changed via an extra transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 120A/150A
• Input Voltage : 3-6S LiPo
• BEC Output : change Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm Gold Connectors (Female)

ESC Programing via

• Transmitter : maybe not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 84.3x38.2x20.4mm
• Weight : 107g
