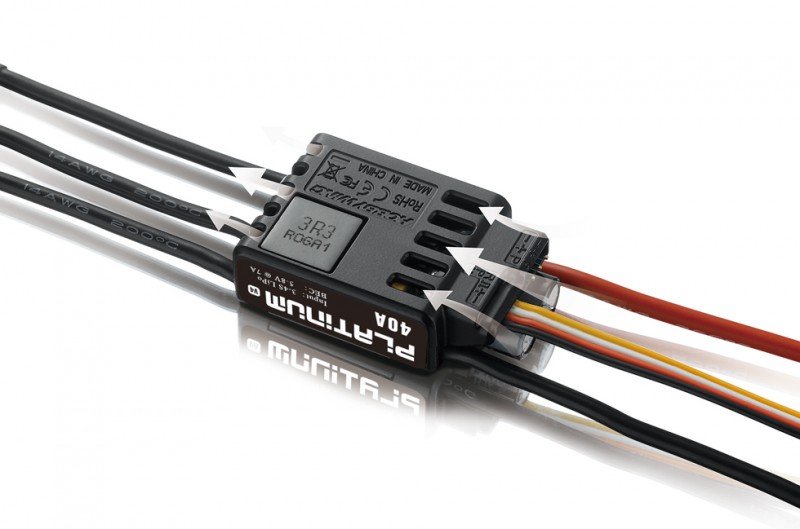

The Platinum 25A V4 & Platinum 40A V4 30204200 produced by Hobbywing, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC
Excellent Motor Governing Speed
High-performance 32-bit processor with a running frequency of 72MHz
combined with advanced level algorithm optimizes the speed governing.
Alongside the adjustable governor parameters guarantees every
pilot a precise control experience
Tall Voltage integrated BEC
The integral switch mode BEC with an adjustable voltage (6V/7.4V for the Platinum
25A V4, 5V~8V with all the step of 0.1V for the Platinum 40A V4), a continuous up-to-date
of over 3A/7A (3A for the Platinum 25A V4, 7A for the Platinum 40A V4) and a peak
present of 7A/18A (7A for the Platinum 25A V4, 18A for the Platinum 40A V4) can
supply sufficient power for the servos to operate effectively.
DEO Technology
The DEO (Driving effectiveness Optimization, or so called "Active Freewheeling")
technology implemented inside ESC has numerous advantages.
● Quicker a reaction to the throttle change.
● greater driving efficiency, longer flight time.
● Lower ESC temperature and a more dependable procedure.
Reverse Brake
With the opposite Brake mode enabled when landing can effectively
shorten the sliding distance of fixed-wing aircraft to simulate the
landing of a genuine aircraft (within a brilliant short distance). The Normal
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
additionally available; the braking system amount is adjustable in normal braking system mode
while in proportional braking system mode, the braking system force is going to be automatically
allotted on the basis of the position of radio throttle stick.
Multiple Protections
Multiple protection features consist of, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle signal loss
(or Fail Safe), and low voltage cutoff efficiently
prolongs the solution life associated with the ESC.
Other Features
A split development slot for connecting the programmer with this ESC permits individual to
● Program ESC,
● check flight information consist of minimal voltage, optimum heat, standardized RPM
and speed curve (in Heli Governing shop mode) regarding the trip data recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program field or a Wi-Fi Module & our
Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 25A/40A
- Input : 3-6S Lipo
- BEC Output : Switch Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires : Black-18AWG-100mm*3
- Input Connectors : No
- Output Connecotors : 3.5mmGold Connectors (Female)
ESC Programing via
- Transmitter : maybe not Supported
- LED Program Card : perhaps not Supported
- LED Program Box : perhaps not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Separate Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 47x22x10mm
- Weight : 27g
