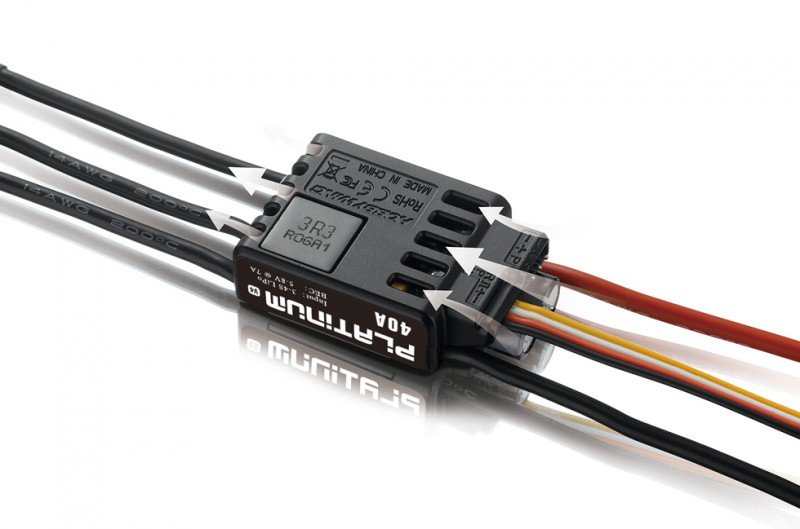

The Platinum 25A V4 & Platinum 40A V4 30215001 produced by Hobbywing, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC
Excellent Motor Governing Speed
High-performance 32-bit processor with a running frequency of 72MHz
coupled with advanced level algorithm optimizes the speed governing.
Together with the adjustable governor parameters guarantees every
pilot a precise control experience
High Voltage integrated BEC
The integral switch mode BEC with a variable voltage (6V/7.4V for the Platinum
25A V4, 5V~8V with all the step of 0.1V for the Platinum 40A V4), a continuous current
of over 3A/7A (3A the Platinum 25A V4, 7A the Platinum 40A V4) and a peak
present of 7A/18A (7A for the Platinum 25A V4, 18A for the Platinum 40A V4) can
provide sufficient energy for the servos to work efficiently.
DEO Technology
The DEO (Driving Efficiency Optimization, roughly called "Active Freewheeling")
technology implemented in the ESC has multiple advantages.
● Quicker reaction to the throttle modification.
● greater driving effectiveness, longer flight time.
● Lower ESC heat and an even more reliable procedure.
Reverse Brake
With the Reverse Brake mode enabled when landing can effectively
reduce the sliding distance associated with fixed-wing aircraft to simulate the
landing of an actual aircraft (within a super short distance). The standard
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
also available; the braking system amount is adjustable in normal braking system mode
during proportional braking system mode, the braking system force are automatically
allotted based on the position of radio throttle stick.
Several Protections
Multiple security features consist of, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle sign loss
(or Fail secure), and low voltage cutoff efficiently
prolongs the solution life of the ESC.
Other Features
A separate development port to get in touch the programmer on this ESC enables user to
● Program ESC,
● check journey information include minimum voltage, optimum heat, standardized RPM
and rate curve (in Heli Governing shop mode) associated with journey information recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program box or a Wi-Fi Module & our
Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Current : 25A/40A
- Input : 3-6S Lipo
- BEC production : Switch Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires : Black-18AWG-100mm*3
- Input Connectors : No
- Output Connecotors : 3.5mmGold Connectors (Female)
ESC Programing via
- Transmitter : maybe not Supported
- LED Program Card : Not Supported
- LED Program Box : Not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Separate Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 47x22x10mm
- Weight : 27g
