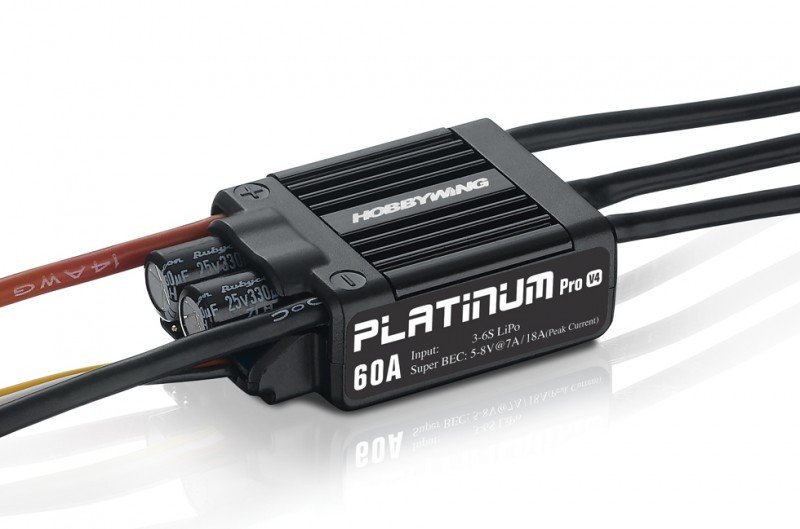

The Platinum 60A V4 30215100 produced by Hobbywing, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC
Excellent Motor Governing Speed
High-performance 32-bit processor with a running regularity of 72MHz
combined with advanced level algorithm optimizes the rate governing.
Alongside the adjustable governor parameters guarantees every
pilot a precise control experience.
Tall Voltage Built-in BEC
The integrated switch mode BEC with a variable voltage range from 5V to 8V,
a continuing present of over 7A and peak present of 18A can provide sufficient
power for your servos to operate effortlessly.
Four Brake Modes
This Platinum 60A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The brake amount is adjustable in
normal brake mode; in proportional brake mode, the brake force will soon be
automatically allocated based on the place for the radio throttle stick; backwards
braking system mode, the engine rotation can be changed via a spare transmitter channel.
Several Protections
Multiple security features consist of, ESC thermal, capacitor thermal
(HOBBYWING-patented technology), ESC overload, throttle sign loss (or Fail secure),
and low voltage cutoff efficiently prolongs the service life of this ESC.
Other Features
A separate programming port to get in touch the programmer on this ESC allows individual to
● Program ESC,
● Check journey data include minimum voltage, maximum temperature, standardized RPM and
speed bend (in Heli Governing Store mode) regarding the journey data recorded by the ESC,
● Upgrade ESC firmware with a multifunction LCD system field or a Wi-Fi Module & our Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 60A/80A
- Input Voltage : 3-6S LiPo
- BEC production : Switch Mode:5-8V,7A
Wires & Connectors
- Input cables : Red-14AWG-100mm*1/Black-14AWG-100mm*1
- Output Wires : Black-14AWG-75mm*3
- Input Connectors : No
- Output Connecotors : 3.5mm Gold Connectors (Female)
ESC Programing via
- Transmitter : maybe not Supported
- LED Program Card : maybe not Supported
- LED Program Box : Not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Program/Throttle Wire
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 48.0x30.0x15.5mm
- Weight : 49g
Applications
- 450-480 Course Heli (Main Blade: 325-360mm）
