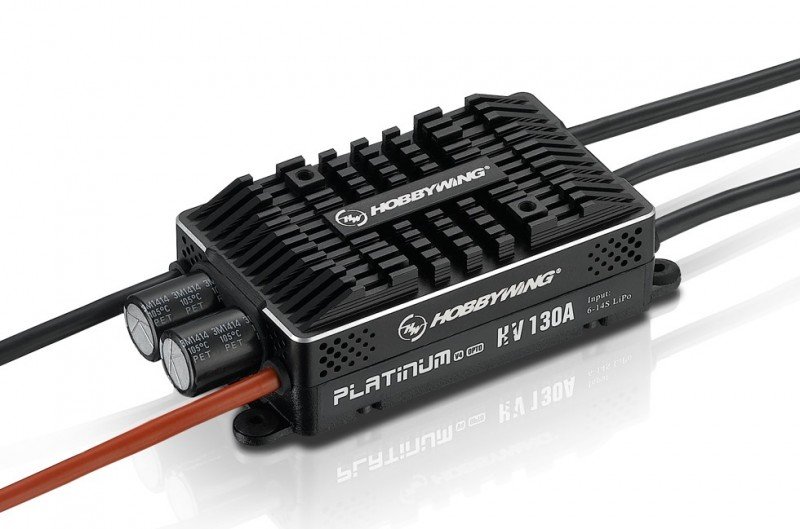

HOBBYWING Platinum HV 130A OPTO V4 - 30209201  [HW-30209201]

Super Soft Start-up

Platinum V4 serial products permits the engine to begin exceptionally smooth and avoids tail-drift
issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,
this can undoubtedly create a great kick off point for every single flight.

Exceptional Motor Speed Governing

High-performance 32-bit processor with an operating regularity of 72MHz along with
advanced level algorithm optimizes the speed governing. Together with the adjustable
governor parameters guarantee every pilot an accurate control experience.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four braking system modes. The brake quantity is adjustable in normal
braking system mode; in proportional braking system mode, the brake force would be immediately
allotted in line with the place of radio throttle stick; backwards brake mode, the
engine rotation can be changed via a spare transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Tall Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC production : No

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 154g
