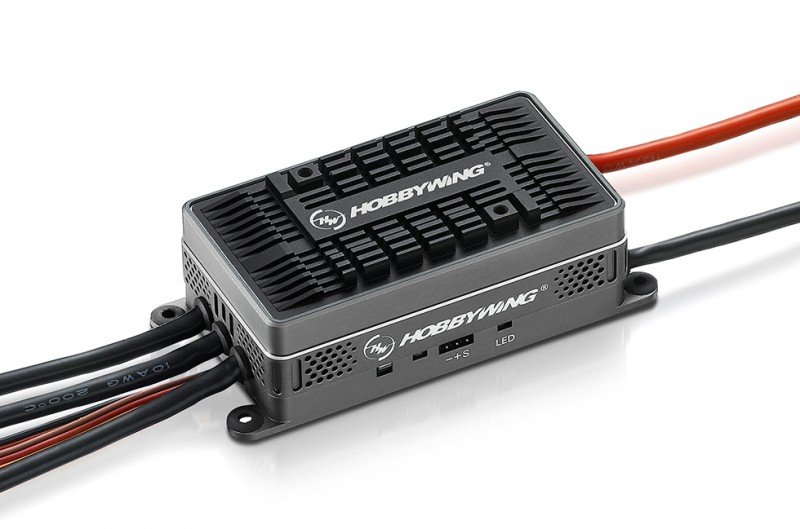

HOBBYWING Platinum HV 160A V4 - 30203700  [HW-30203700]

One of a kind Design

The elegant situations are produced by Aluminum. Each cooling slot and its particular fin had been very carefully created
and arranged, additionally the instance went through oxidation, coloring and edge-highlighting.

Revolutionary Heat Dissipation
Structure

The innovative "duo" stacking framework
enables all components on both edges of
printed circuit boards to quickly conduct
temperature towards the aluminum instance.

Excellent engine Speed
Governing

High-performance 32-bit processor combined
with higher level algorithm makes the motor
speed-governing excellent for different
conditions. With all the adjustable sensitiveness of
speed-governing, every pilot can find many
suitable settings for their helicopter.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Current : 160A/200A
• Input Voltage : 6-14S LiPo
• BEC production : Switch Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output Wires : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 106.0x50.0x34.0mm
• Weight : 282g
