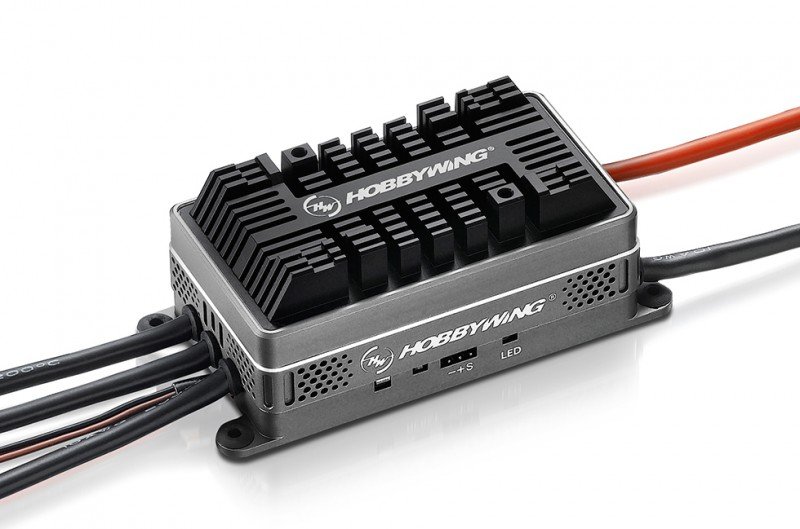

HOBBYWING Platinum HV 200A OPTO V4 - 30209100  [HW-30209100]

One of a kind Design

The elegant situations are created by Aluminum. Each cooling slot and its own fin had been very carefully designed
and arranged, and the case has gone through oxidation, color and edge-highlighting.

Innovative Heat Dissipation
Structure

The revolutionary "duo" stacking structure
allows all components on both sides for the
printed circuit panels to quickly conduct
temperature to your aluminum situation.

Excellent Motor Speed Governing

High-performance 32-bit processor coupled with
higher level algorithm makes the engine
speed-governing excellent for different conditions.
Using the adjustable sensitivity of speed-governing,
every pilot will get the best option settings for
his helicopter.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Current : 200A/250A
• Input : 6-14S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : maybe not Supported
• LED Program Card : maybe not Supported
• LED Program Box : Not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 106.0x50.0x40.0mm
• Weight : 305g
