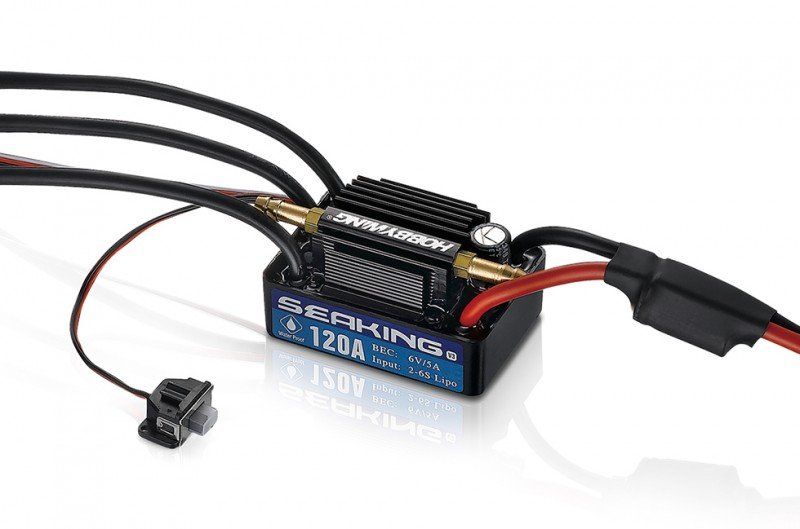

HOBBYWING Seaking 120A V3 - 30302360  [HW-30302360]

Performance & Reliability

Built with top-notch components and along with cutting-edge firmware,
the Seaking 60A V3.1 is featured by unmatched performance and reliability.
Multiple security adjustable options are in use,
using the implementation of the low-voltage cutoff protection,
thermal protection and throttle sign loss protection.

Effective Cooling System

The Hobbywing patented heat-conductive copper bar address on energy board of
the Seaking 60A V3.1 can effortlessly and efficiently transfer heat on built-in CNC machined
billet aluminum water cooled temperature sink housing therefore keeping
your ESC as cool possible.

Waterproof Design

100% waterproof with no need of additional protection.

Built-in BEC

The integral switch mode BEC with a maximum production of 6Amp and
voltage of 6V get this ESC appropriate for high voltage servo.

Unique Algorithm Design

The special algorithm implemented within the ESC make the acceleration
more amazing and sailing more stable.

Individual PRG/FAN Port

The separate PRG/FAN port regarding ESC can link ESC to a program
field (via the trio-color development cable) and commence ESC programming.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 120A/720A
• BEC production : Switch Mode:6V/5A

Wires & Connectors

• Output Wires : Black-12AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 68.5x39.4x32mm
• I.D./O.D. associated with the liquid Cooling Pipe : Ф3.0/5.4 mm
• Weight : 150g

Applications

• Boat Length <110cm
