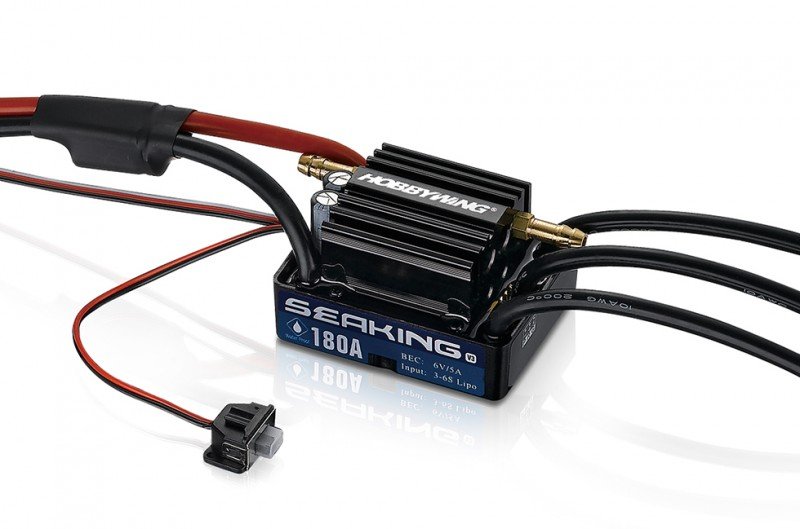

HOBBYWING Seaking 180A V3 - 30302400  [HW-30302400]

Performance & Reliability

Built with high-quality components and coupled with cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
numerous security adjustable options have been in usage,
utilizing the implementation of the low-voltage cutoff security,
thermal protection and throttle sign loss protection.

Effective Cooling System

The Hobbywing patented heat-conductive copper club address regarding the power board of
the Seaking 60A V3.1 can effortlessly and efficiently move temperature to the built-in CNC machined
billet aluminum water cooled heat sink housing therefore maintaining
your ESC as cool as you are able to.

Waterproof Design

100percent waterproof without the necessity of extra protection.

Integrated BEC

The built-in switch mode BEC with a maximum production of 6Amp and
voltage of 6V get this ESC suitable for high voltage servo.

Special Algorithm Design

The unique algorithm implemented inside ESC make the acceleration
more amazing and cruising more stable.

Separate PRG/FAN Port

The split PRG/FAN slot regarding the ESC can link ESC to a course
box (via the trio-color development cable) and commence ESC programming.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Current : 180A/1080A
• BEC production : Switch Mode:6V/5A

Wires & Connectors

• Output Wires : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : Not Supported
• WiFi Module : perhaps not Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 72.0x48.0x36.6mm
• I.D./O.D. regarding the Water Cooling Pipe : Ф3.0/5.4 mm
• Weight : 207g

Applications

• Boat Length <130cm
