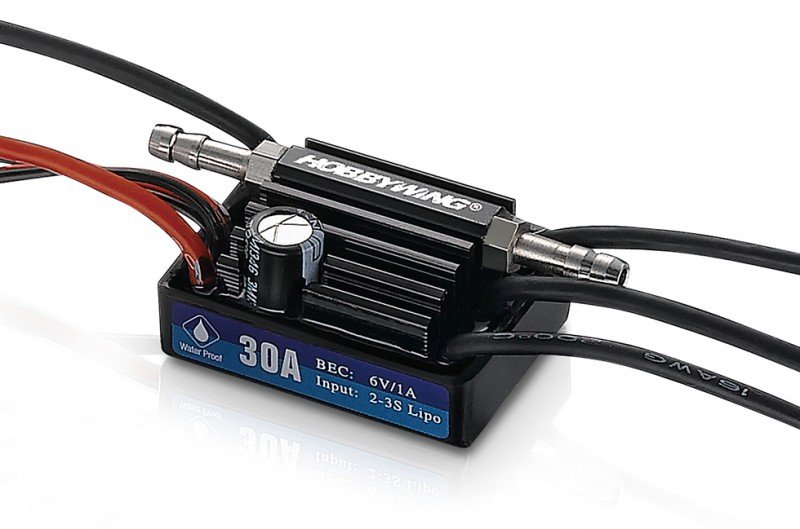

HOBBYWING Seaking 30A V3 - 30302060  [HW-30302060]

HOBBYWING Seaking 30A V3 - 30302060
Price:
USD$38.70
Brand:
Hobbywing
Model:
HW-30302060
Condition:
Brand New
Write a review

Efficiency & Reliability

Built with top-notch components and in conjunction with cutting-edge firmware,
the Seaking 60A V3.1 is featured by unmatched performance and reliability.
Multiple security adjustable options come in use,
with all the implementation of the low-voltage cutoff protection,
thermal protection and throttle sign loss security.



Efficient Cooling System

The Hobbywing patented heat-conductive copper club address regarding the power board of
the Seaking 60A V3.1 can effectively and efficiently move temperature to the built-in CNC machined
billet aluminum water cooled temperature sink housing hence maintaining
your ESC as cool as you can.



Waterproof Design

100% waterproof without the need of extra security.



Built-in BEC

The built-in switch mode BEC with a maximum production of 6Amp and
voltage of 6V make this ESC compatible with high voltage servo.



Unique Algorithm Design

The special algorithm implemented in ESC make the acceleration
more amazing and cruising more stable.



Individual PRG/FAN Port

The separate PRG/FAN port regarding the ESC can link ESC to a program
field (via the trio-color development cable) and start ESC programming.



Type

  • Brushed/Brushless : BL
  • Waterproof : WP

Specifications

  • Cont./Peak Present : 30A/180A
  • BEC Output : Linear Mode:6V/1A

Wires & Connectors

  • Output cables : Black-16AWG-75mm*3
  • Input Connectors : No
  • Output Connecotors : No
  • Transmitter : Supported
  • LED Program Box : Supported
  • LCD Program Box : Not Supported
  • WiFi Module : maybe not Supported
  • Program Port : Program/Throttle Wire

Firmware

  • Firmware Upgrade : Not Supported

Size & Weight

  • Size : 54.5x28.3x18.7mm
  • I.D./O.D. of Water Cooling Pipe : Ф2.0/4.0 mm
  • Weight : 41g

Applications

  • Boat Length <45cm
