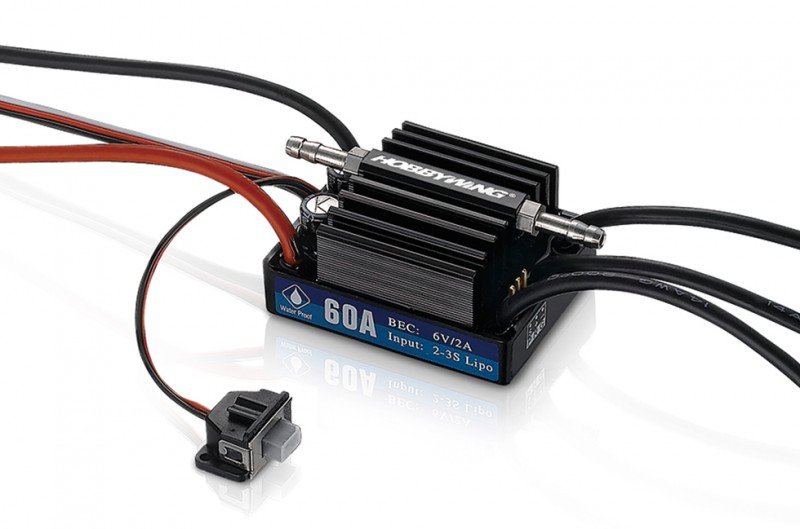

HOBBYWING Seaking 60A V3.1 - 30302200  [HW-30302200]

HOBBYWING Seaking 60A V3.1 - 30302200
Price:
USD$84.10
Brand:
Hobbywing
Model:
HW-30302200
Condition:
Brand New
Write a review

Performance & Reliability

Built with top-notch components and coupled with cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
numerous security adjustable options come in usage,
aided by the utilization of the low-voltage cutoff protection,
thermal protection and throttle sign loss security.



Effective Cooling System

The Hobbywing patented heat-conductive copper club cover on the energy board of
the Seaking 60A V3.1 can effortlessly and effectively transfer heat to the built-in CNC machined
billet aluminum water cooled temperature sink housing thus keeping
your ESC as cool as possible.



Waterproof Design

100percent waterproof with no need of additional security.



Built-in BEC

The integrated switch mode BEC with a maximum production of 6Amp and
voltage of 6V get this to ESC compatible with high voltage servo.



Special Algorithm Design

The special algorithm implemented inside ESC result in the acceleration
more incredible and cruising more stable.



Separate PRG/FAN Port

The separate PRG/FAN port on the ESC can link ESC to a program
package (via the trio-color programming cable) and begin ESC programming.



Type

  • Brushed/Brushless : BL
  • Waterproof : WP

Specifications

  • Cont./Peak Current : 60A/360A
  • BEC production : change Mode:6V/3A

Wires & Connectors

  • Output Wires : Black-14AWG-100mm*3
  • Input Connectors : No
  • Output Connecotors : No
  • Transmitter : Supported
  • LED Program Box : Supported
  • LCD Program Box : maybe not Supported
  • WiFi Module : Not Supported
  • Program Port : Separate Program Port

Firmware

  • Firmware Upgrade : perhaps not Supported

Size & Weight

  • Size : 60.5x38.5x25.6mm
  • I.D./O.D. of liquid Cooling Pipe : Ф2.0/4.0 mm
  • Weight : 95g

Applications

  • Boat Length <70cm
