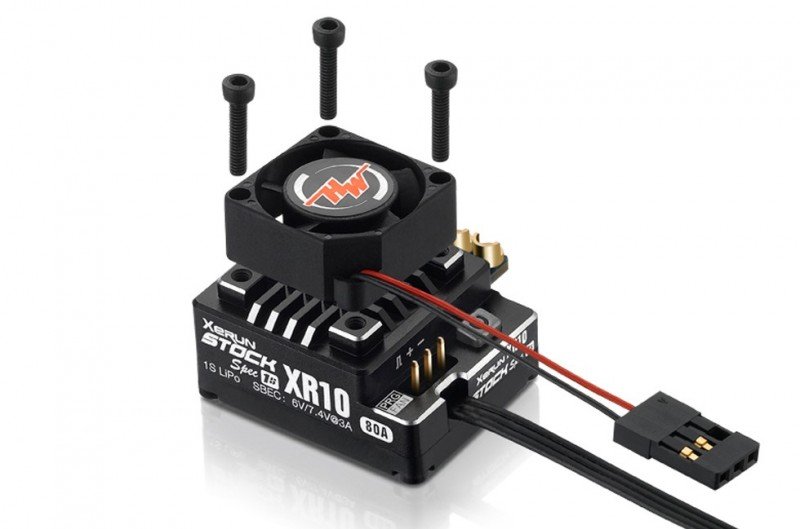

HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751  [HW-30112751]

HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751
Price:
USD$127.10
Brand:
Hobbywing
Model:
HW-30112751
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category
Write a review
alt="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751" title="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751"
alt="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751" title="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751"

Little & Lightweight

The little size (20% smaller than the conventional variation XeRun XR10 professional 1S)
saves area therefore the light-weight (only 23.5g w/o cables) provides more
fat margin whenever adjusting the balance regarding the framework.



Super Internal BEC

The integral boost BEC with a maximum production of 6A and voltage
adjustable between 6V and 7.4V permits users to make use of various,
servos and receivers (without connecting any additional battery).




Adjustable Throttle & Brake PWM Frequencies

The independent and adjustable throttle & brake PWM frequencies guarantee users the
accurate and accurate throttle and braking system control.



Programming/Upgrading/Data Reading Wirelessly

With Hobbywing's "WiFi Express" module and iPhone or an Android os phone (with the HOBBYWING
WiFi Link pc software installed), an individual can remotely program parameters, update firmware and always check
appropriate data of ESC without making the control stand.



Integrated Electronic Switch

The internal electronic switch with a lifespan of over 50000 on/off cycles
completely solves the difficulties like stuck reed, rusted contact points, and
automatic shutdown old-fashioned technical switches frequently have.



Data-logging Capability

This ESC features the data-logging function that'll record the
optimum ESC& engine conditions, the utmost motor RPM,
and etc. immediately and enables users to check on those data via a LCD
program package or WiFi module after every use.





Product Specification


Type

  • Scale : 1/12th
  • Brushed/Brushless : BL
  • Sensored/Sensorless : SD
  • Waterproof : No

Specifications

  • Cont./Peak Current : 80A/380A
  • Input Voltage : 1S Lipo/3-4 Cell NiMH
  • BEC Output : 6V/7.4V@3A

Wires & Connectors

  • Input Wires : Black-14AWG-200mm*2
  • Output cables : Black-14AWG-200mm*3
  • Input Connectors : No
  • Output Connectors  : No

ESC Programing via

  • SET Button on ESC : perhaps not Supported
  • LED Program Box : Not Supported
  • LCD Program Box : Supported
  • WiFi Module : Supported
  • Programming : split Programming

Firmware

  • Firmware Upgrade : Supported

Size & Weight

  • Size : 31.6x25.8x16.2mm
  • Weight : 23.5g (w/o Wires)

Applications

  • Motors : SL BL Motors
    SD BL Motors
  • Vehicles : Stock 1S class of 1/10th & 1/12th on-road racing.
  • KV Rating/T Count : ≥10.5T, 3650-size Motor
