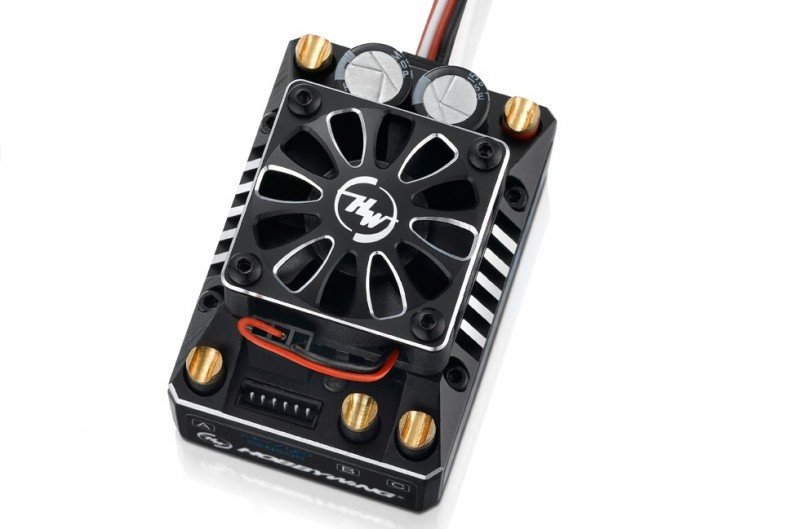

The XeRun XR8 SCT 30113301 produced by Hobbywing, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC
Full-sensored Mode Supported
The first 1/8 scale competition ESC which can work the full-sensored mode at all
times (when combining it with a HOBBYWING matching motor).
Turbo Timing Technology
Turbo timing technology is implemented by the XR8 SCT to unleash the utmost energy
of a HOBBYWING matching motor.
Small & Light construction Design
Small (30.1% smaller compared to XR8 Plus in size) and light (36.5g lighter than XR8
Plus in fat) structure design greatly simplifies installing
the power system (esp. for vehicles like buggy and touring vehicle
with compact framework).
Programming / Upgrading /
information reading wirelessly
With Hobbywing's "WiFi Express" module and iPhone or an Android phone (with all the HOBBYWING
WiFi Link computer software installed), the consumer can remotely plan parameters, update firmware and
always check relevant information regarding the ESC without leaving the control stand.
Coasting
The XR8 SCT provides a very smooth off-throttle coasting function, which simulates the feeling
of inertia and energy of a large-scale automobile driving experience. This might greatly enhance the
performance of builds using big, high-powered motors as electromagnetic drag
becomes a substantial factor in sudden deceleration whenever in off-throttle
position, adversely impacting driving performance and general maneuvering.
Capacitor Thermal Protection
Capacitor thermal protection implemented by the XR8 SCT will effortlessly prevent capacitors
from exploding and causing irreversible damage to the ESC due to overload.
High Voltage Built-in BEC
High voltage built-in BEC with a production up-to-date of up to 15 Amp and a
switchable production voltage of 6V-7.4V enables users to
utilize different high torque and high voltage servos.
High Reliability & Durability
Built with the most tough and top-notch elements and in conjunction with cutting-edge firmware,
the XR8 SCT can deliver unmatched energy and gratification even for the absolute most hardcore
of racing applications, it is also responsive sufficient to guard itself from harm due
to overloading as a result of real abuse, overuse and/or human being error.
Advanced and Secure Electronic Switch
Electronic switch with a lifespan of over 50000 on/off cycles, housed in a totally waterproof,
dust-proof and shock-resistant design.
Ultra-Reliable Cooling System
HOBBYWING's patented air conditioning technology uses proprietary heat-conductive copper
pubs to rapidly and effectively move all interior temperature from the MOSFET board towards
integrated CNC machined billet aluminum heatsink housing. The cooling fan adopts a
shockproof mounting which efficiently reduces the likelihood
of fan harm considering vehicle’s regular jumps.
Wide applicability
This XR8 SCT ESC isn't just applicable to 1/8th buggies and short-course
trucks but additionally 1/10th short-course vehicles, vehicles and monster vehicles.
Product Specification
Type
- Scale : 1/8th&1/10th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : No
Specifications
- Cont./Peak Present : 140A/880A
- Input Voltage : 2-4S Lipo/6-12 Cell NiMH
- BEC production : change Mode: 6V/7.4V,6A
Wires & Connectors
- Input Wires : Red-12AWG-200mm*1/Black--12AWG-200mm*1
- Output Wires : Blue -12AWG-200mm*1
Yellow-12AWG-200mm*1
Orange -12AWG-200mm*1 - Input Connectors : No
- Output Connectors : No
Fan
- Size : 30x30x10mm
- Voltage number : 5-7.4V
- Powered by : BEC
ESC Programing via
- SET Button on ESC : perhaps not Supported
- LED Program Box : perhaps not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : PRG/Fan Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 54.1x37.2x36.1mm
- Weight : 90.5g
Applications
- Motors : SL BL Motors
SD BL Motors - Vehicles : 1/10th SCT/Truck/Monster Truck & 1/8th Buggy/On-road Racing
- KV Rating/T Count : With 2S LiPo/6S NiMH: 3660 size engine, KV≤6000
With 3S LiPo/9S NiMH: 3660 size motor, KV≤4000
With 4S LiPo/12S NiMH: 3660 size engine, KV≤3000
With 4S LiPo/12S NiMH: 4268 size motor, KV≤2500.
