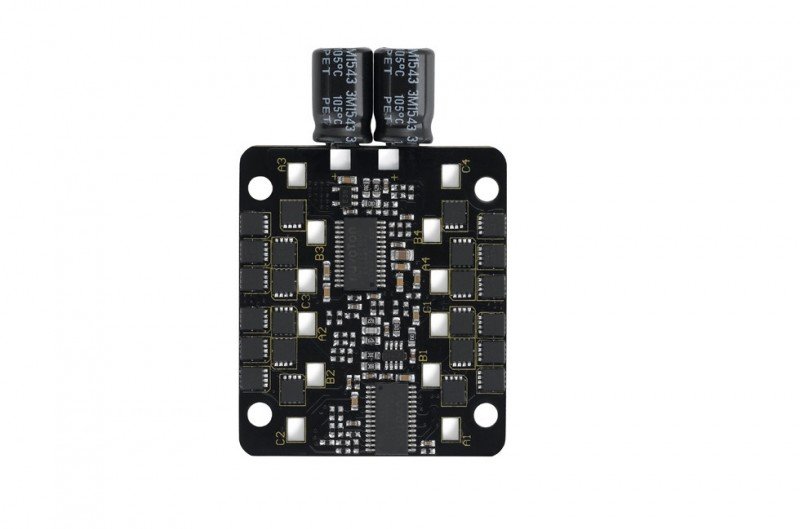

The XRotor 12A 4IN1 Micro 30901041 produced by Hobbywing, is classified in R/C Models - System - Drone System
Highly Integrated
This XRotor 4IN1 Micro ESC not only includes 4 high-performance 20A ESCs,
1 built-in BEC, but also production ports for powering peripherals like FC, digital camera,
and a slot for FC checking present and voltage immediately. The very integrated
structure makes the installation and wiring simple and clean.
Direction Reversal via TX
Rotation way of each motor could be set via transmitter.
This saves the trouble of re-soldering/re-connecting after connected/soldered motors to
the ESC easily and found motor runs backwards.
Quality Components
The utilization of high performance 32-bit supply processors
(because of the operating frequency of up to 48MHz),
built-in drive ICs, imported quality MOSFETs,
3-ounce copper and 6 levels of PCBs guarantees less heat,
greater effectiveness and rapider reaction.
Oneshot125, Oneshot42 & Multishot Modes eager!
This Xrotor 20A 4IN1 Micro ESC not just supports
regular throttle signals (utilizing the frequency of up to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with all the real-time regularity all the way to 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
high rate throttle signals. All this makes interaction
between FC and ESC more agile, throttle linearity smoother,
and throttle reaction rapider.
DEO Technology/Active Freewheeling
The DEO (Driving Efficiency Optimization) technology
implemented in the ESC has multiple advantages:
● Active braking. Whenever reducing the throttle quantity, the motor will
decelerate rapidly. This feature enables pilots to easier
perform all maneuvers like razor-sharp turns, altitude changes,
and sudden braking.
● Higher driving efficiency, longer trip time.
● Lower ESC temperature and a far more reliable operation.
Engine Lock-up Protection
This XRotor 20A 4IN1 Micro ESC cuts down its production to engine immediately
when it detects the motor shaft is locked up.
Splash-proof
The entire circuit board and all sorts of the components on
it went through nano-coating treatment;
this will make the XRotor 20A 4in1 Micro ESC splash-proof.
Specifications
- Cont./Peak Current : 12A×4/18A×4
- LiPo Cells : 1-4S LiPo
- BEC production : 5V,1A
Wires & Connectors
- Output cables : solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : HW Special Program for FPVs
- ESC Programming : Supported
- Stick Programming : Transmitter
- DEO : Supported
- Throttle number Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : Not Supported
- Motor Rotation : Supported
Size & Weight
- Size : 38.1x37.9x5.3mm
- Weight : 8g
