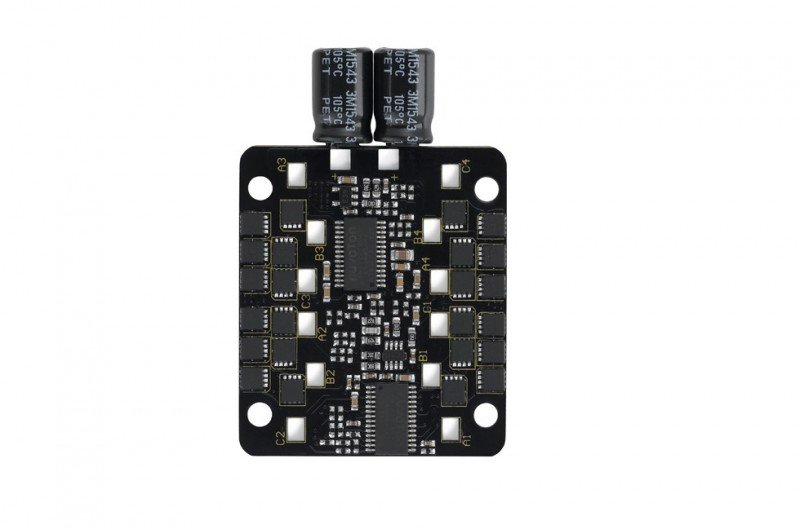

The Xrotor 20A 4IN1 Micro 30901065 produced by Hobbywing, is classified in R/C Models - System - Drone System
Definitely Integrated
This XRotor 4IN1 Micro ESC not just includes 4 superior 20A ESCs,
1 integrated BEC, but in addition output ports for powering peripherals like FC, camera,
and a port for FC checking current and voltage instantly. The highly integrated
structure makes the installation and wiring simple and clean.
Direction Reversal via TX
Rotation direction of each motor may be set via transmitter.
This saves the trouble of re-soldering/re-connecting after connected/soldered engines to
the ESC freely and discovered motor runs in reverse.
Quality Components
The usage of high performance 32-bit supply processors
(aided by the running frequency of up to 48MHz),
built-in drive ICs, imported quality MOSFETs,
3-ounce copper and 6 layers of PCBs guarantees less heat,
higher efficiency and rapider reaction.
Oneshot125, Oneshot42 & Multishot Modes set!
This Xrotor 20A 4IN1 Micro ESC not only supports
regular throttle signals (using the regularity all the way to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with all the real-time frequency of up to 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
high speed throttle signals. All of this makes interaction
between FC and ESC more agile, throttle linearity smoother,
and throttle reaction rapider.
DEO Technology/Active Freewheeling
The DEO (Driving effectiveness Optimization) technology
implemented inside ESC has multiple advantages:
● Active braking. Whenever reducing the throttle amount, the motor will
decelerate rapidly. This particular feature allows pilots to more easily
perform all maneuvers like sharp turns, altitude changes,
and sudden braking.
● Higher driving effectiveness, longer journey time.
● Lower ESC temperature and a more dependable operation.
Motor Lock-up Protection
This XRotor 20A 4IN1 Micro ESC cuts down its production to motor straight away
when it detects the engine shaft is locked up.
Splash-proof
The whole circuit board and all sorts of the components on
it have gone through nano-coating therapy;
this will make the XRotor 20A 4in1 Micro ESC splash-proof.
Specifications
- Cont./Peak Current : 20A×4/25A×4
- LiPo Cells : 3-4S LiPo
- BEC production : 5.3V/12V，3A
Wires & Connectors
- Output Wires : No wires but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : HW Special Program for FPVs
- ESC Programming : Supported
- Stick Programming : Transmitter
- DEO : Supported
- Throttle Range Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : perhaps not Supported
- Motor Rotation : Supported
Size & Weight
- Size : 54x36x7mm
- Weight : 24.5g
